ML5 Modular LED Street Light (3 Sizes)
型号：ML5
Modular AC LED street light in three sizes (96 / 144 / 192 SMD 3030), AC 85-305V, for 6-15m mounting.
质保
3-5 年
起订量
10 套
交期
15-25 天
CE
已认证
RoHS
已认证
ISO 9001
已认证
| LED | SMD 3030 |
|---|---|
| Input Voltage | AC 85-305V |

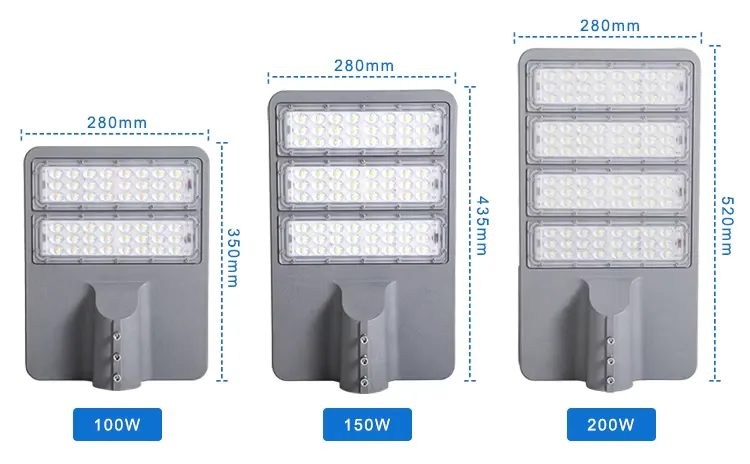

| Size Options | L350*W280*H125MM / L435*W280*H125MM / L520*W280*H125MM |
| LED Quantity Options | 96pcs / 144pcs / 192pcs |
| Installation Height | 6-8m / 8-10m / 12-15m |
| Material | Aluminum + PC |
| Warranty | 3 years |
产品说明
它做什么。

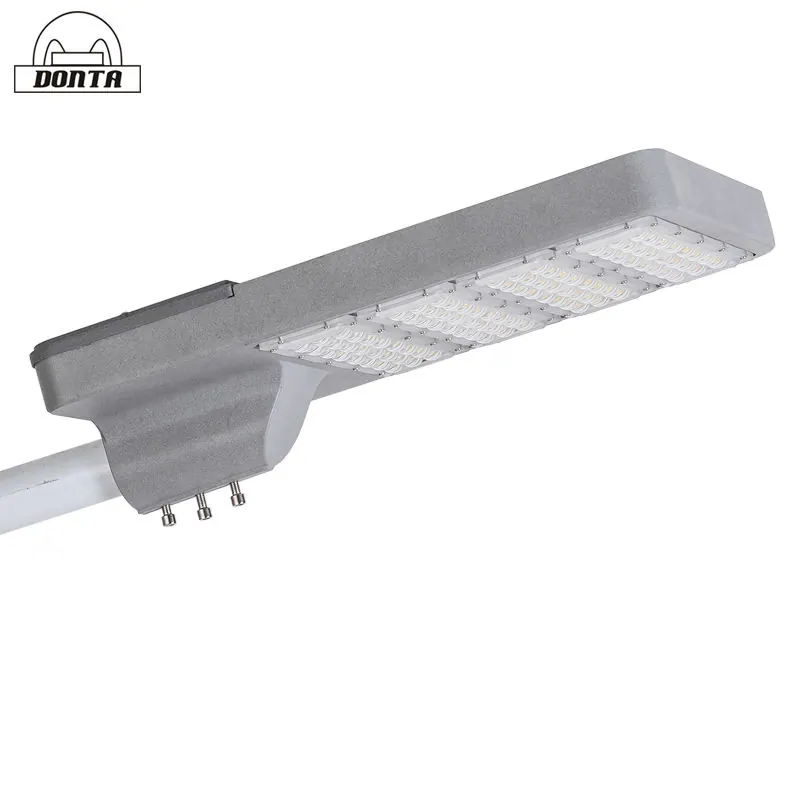

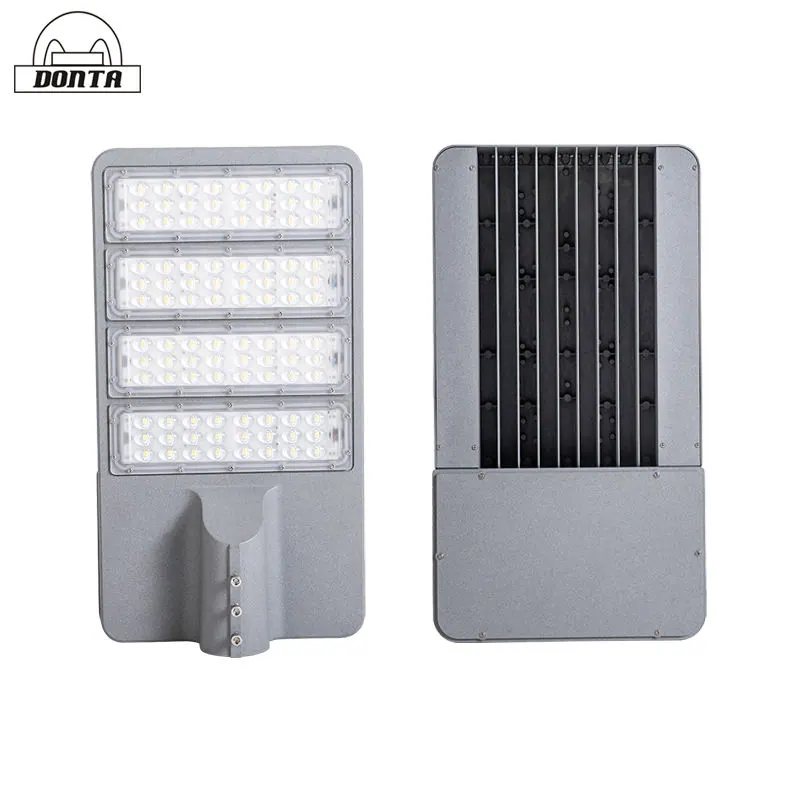

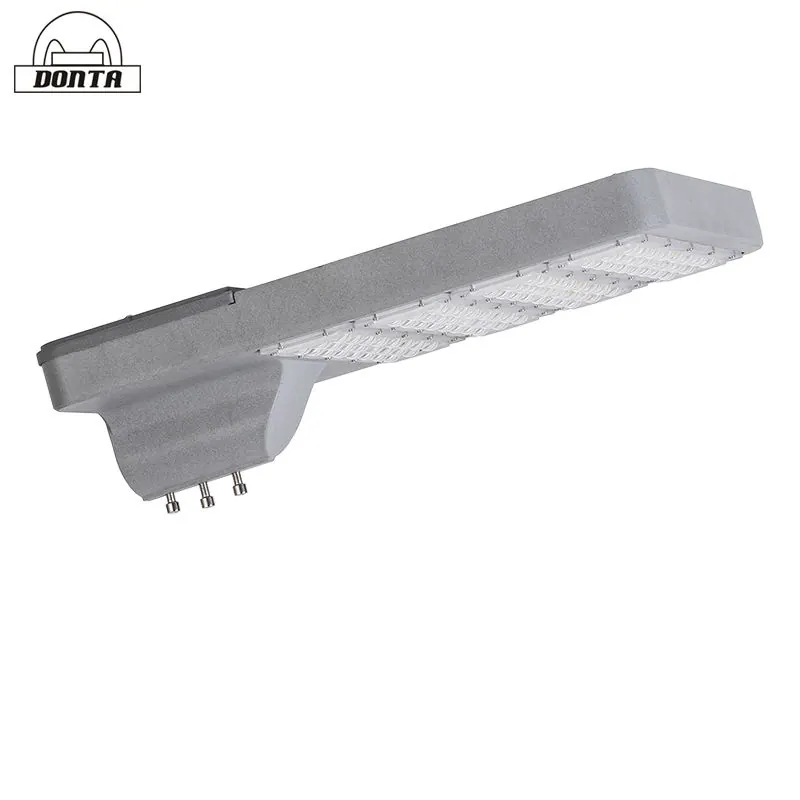

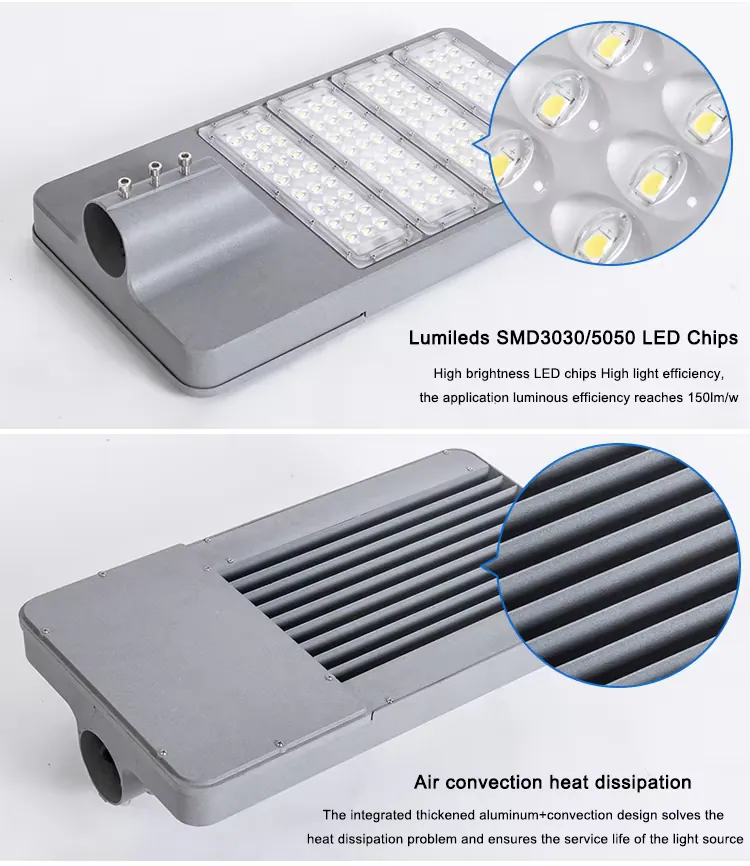

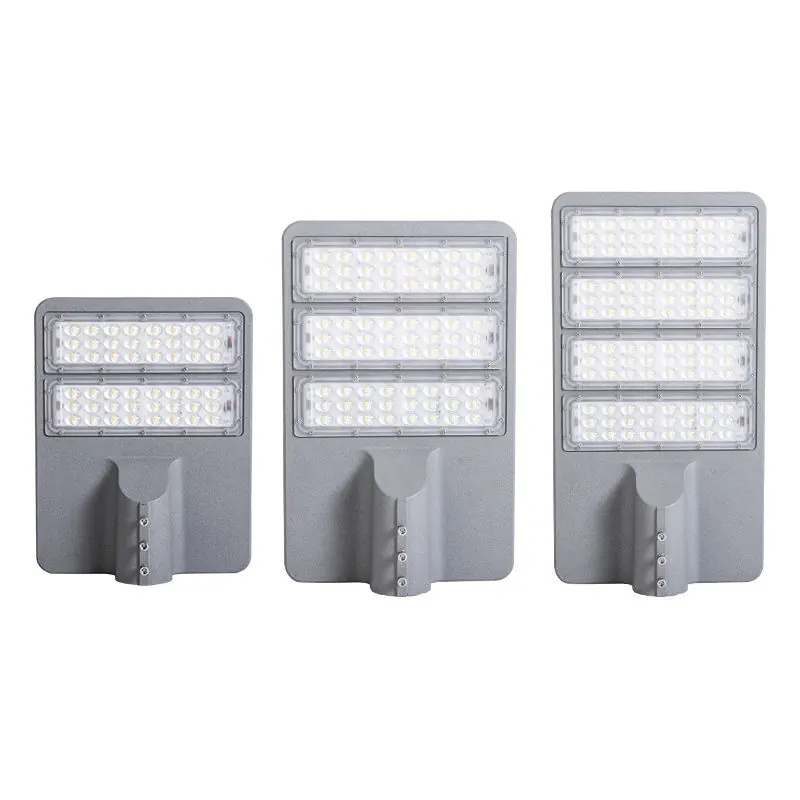

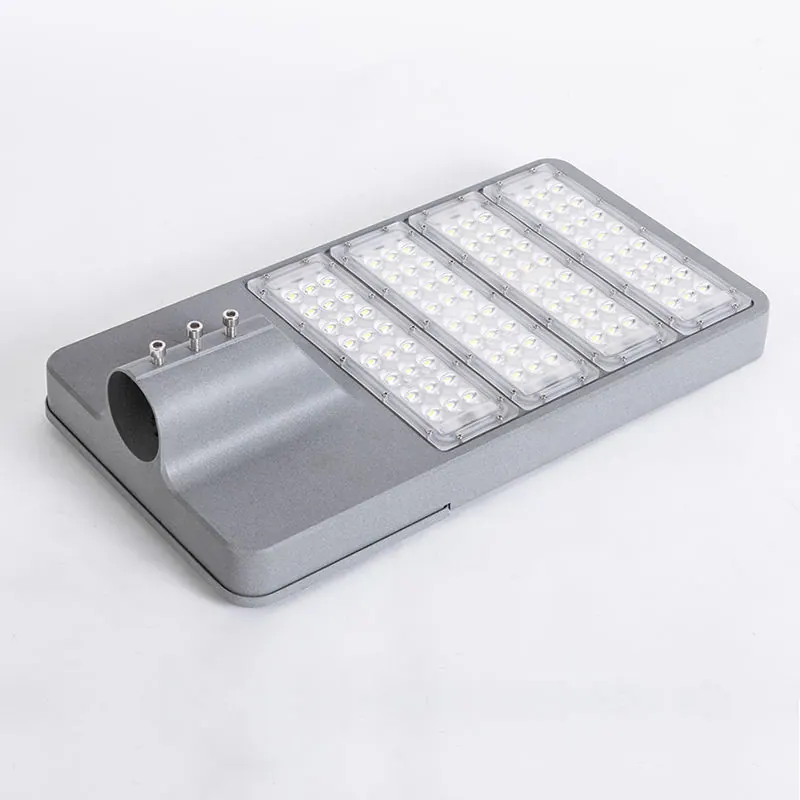

The ML5 is a modular AC-powered LED street light offered in three body lengths — L350, L435 and L520mm — with 96, 144 and 192 SMD 3030 emitters. The modular construction means individual LED boards and the driver can be replaced in the field rather than swapping the whole fixture.

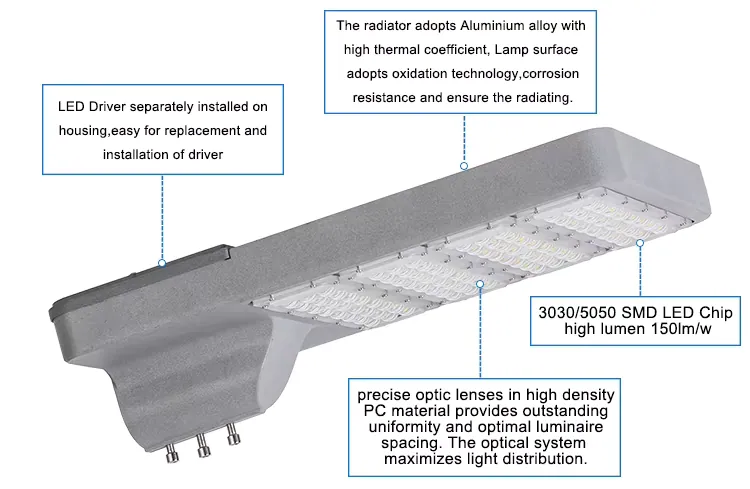

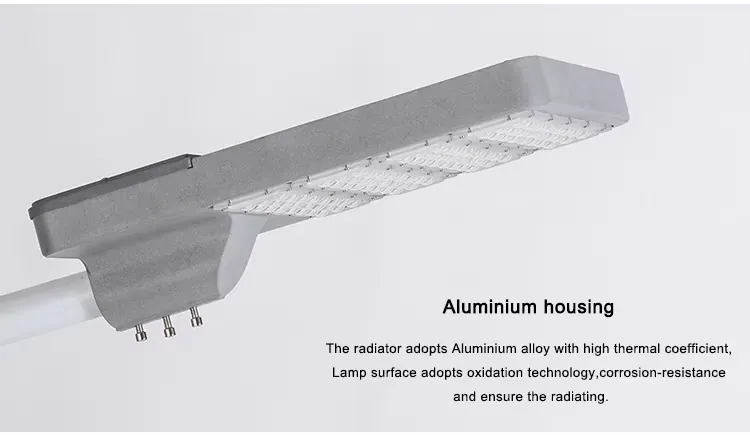

Universal AC 85-305V input covers most global mains supplies. The three sizes map cleanly onto mounting heights of 6-8m, 8-10m and 12-15m, so a single series covers residential streets through to arterial roads. Die-cast aluminium housing, PC lens, and a tool-less opening for maintenance.
Common applications: residential streets, secondary roads, industrial parks, car parks, campus roads, and municipal lighting retrofits.
产品细节
近距离观察。

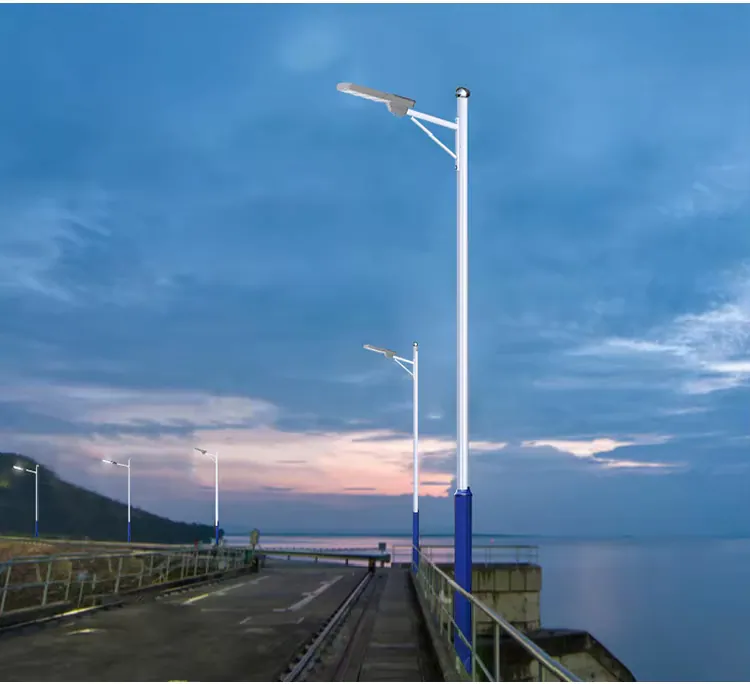

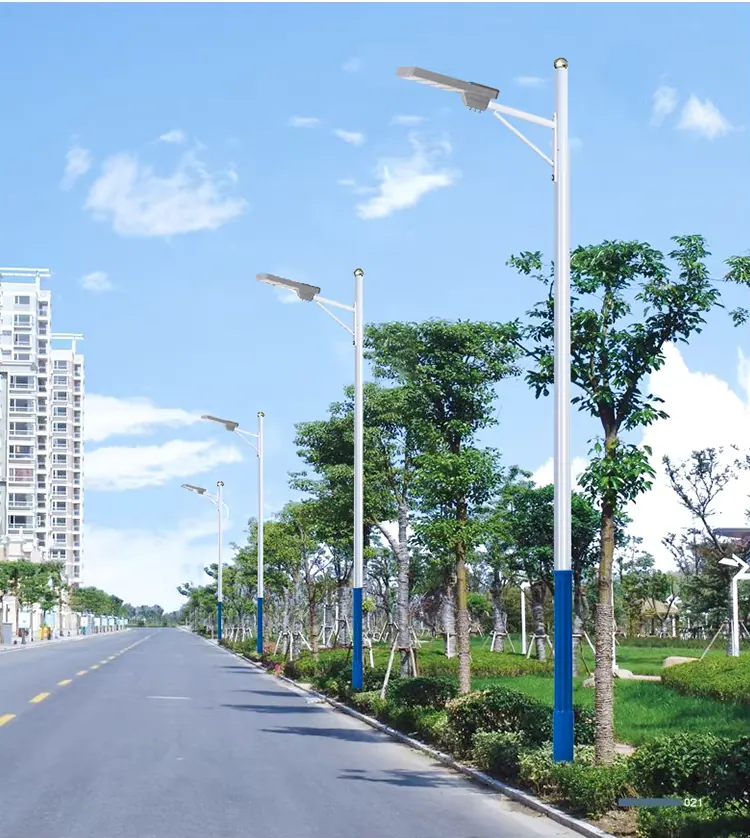

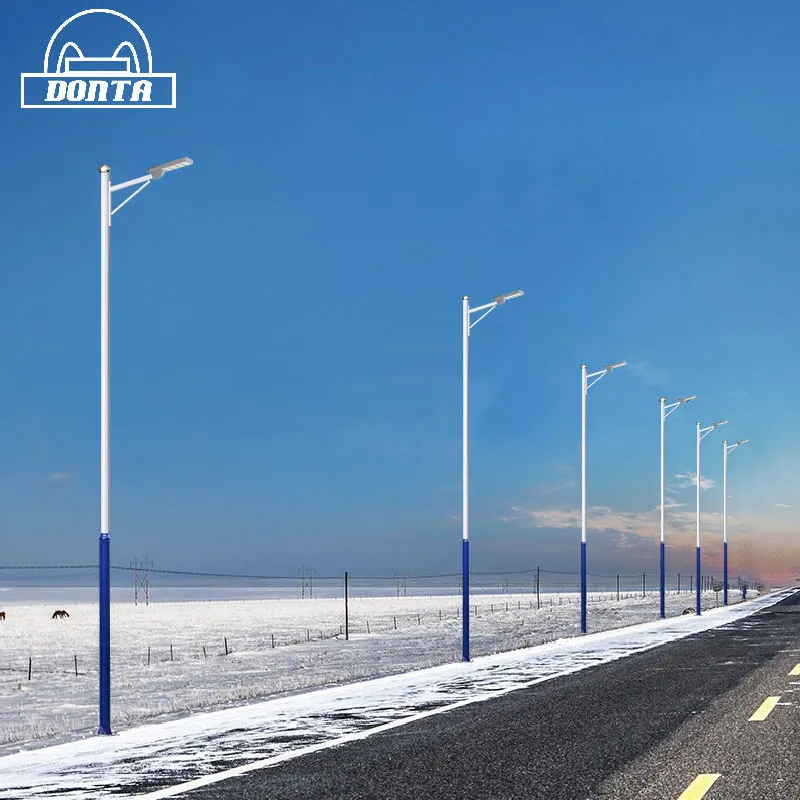

尺寸结构、应用现场、认证文件。 点击任意缩略图查看大图。
9 张细节图
可选型号
3 种配置。
同一产品族，多种功率与尺寸。按项目灯杆高度与照明需求选对应 SKU。
| SKU | LED 数 | 尺寸 |
|---|---|---|
| ML5-2 | 96 | L350*W280*H125MM |
| ML5-3 | 144 | L435*W280*H125MM |
| ML5-4 | 192 | L520*W280*H125MM |
质保多久？
整灯 3 年，LED 模组 5 年，太阳能板 10 年。任何问题由我们承担换货。
起订量是多少？
标准款 10 套起订；完全定制款 50 套起订；1-3 套样品可现货发货（需加少量加急费）。
交期多久？
样品 7-15 天；500 套以下批量 15-25 天；500-2000 套 25-35 天。每次报价都会确认准确交期。
怎么安装？
每批货都附纸质安装指南。多数灯具用 4 颗 M8 螺栓固定到标准 60mm 灯杆，无需特殊工具。
