B2 Modular LED Flood Light (3 Sizes)
型号：B2
Modular AC LED flood light in three sizes (96 / 144 / 192 LEDs), SMD 3030, CRI≥75Ra, dual 70°+140° beam, IP65.
质保
3-5 年
起订量
10 套
交期
15-25 天
CE
已认证
RoHS
已认证
ISO 9001
已认证
| LED | SMD 3030 |
|---|---|
| CRI | ≥75Ra |
| Beam Angle | 70° + 140° / 120° |
| IP Rating | IP65 |
| Color Temperature | 3000K / 4000K / 6000K |
| Size Options | L295*W210*H70MM / L349*W249*H70MM / L405*W290*H70MM |
| LED Quantity Options | 96pcs / 144pcs / 192pcs |
| Material | Aluminum + PC |
| Warranty | 3 years |
产品说明
它做什么。

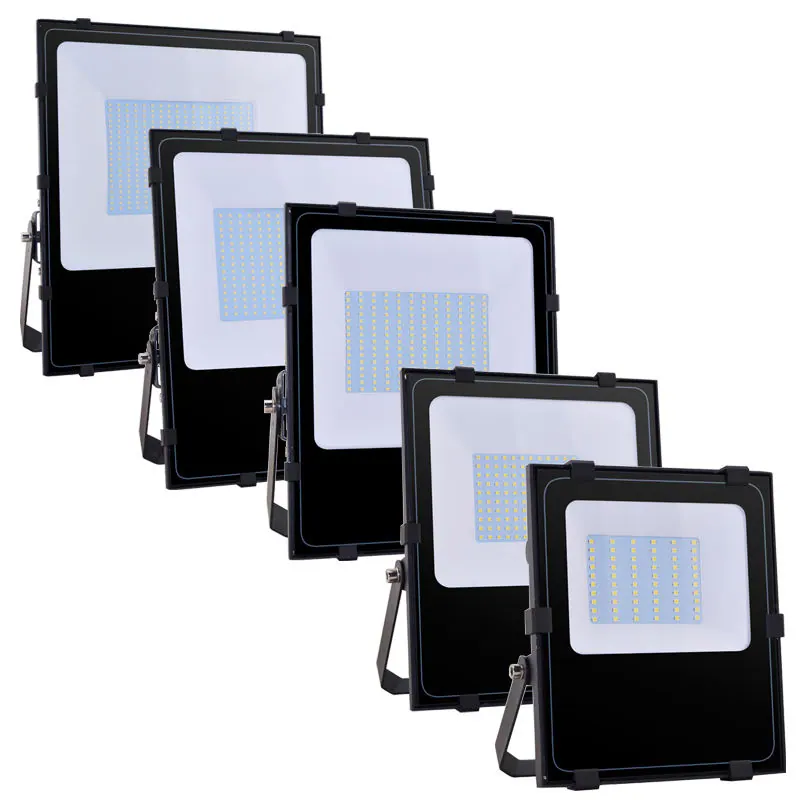

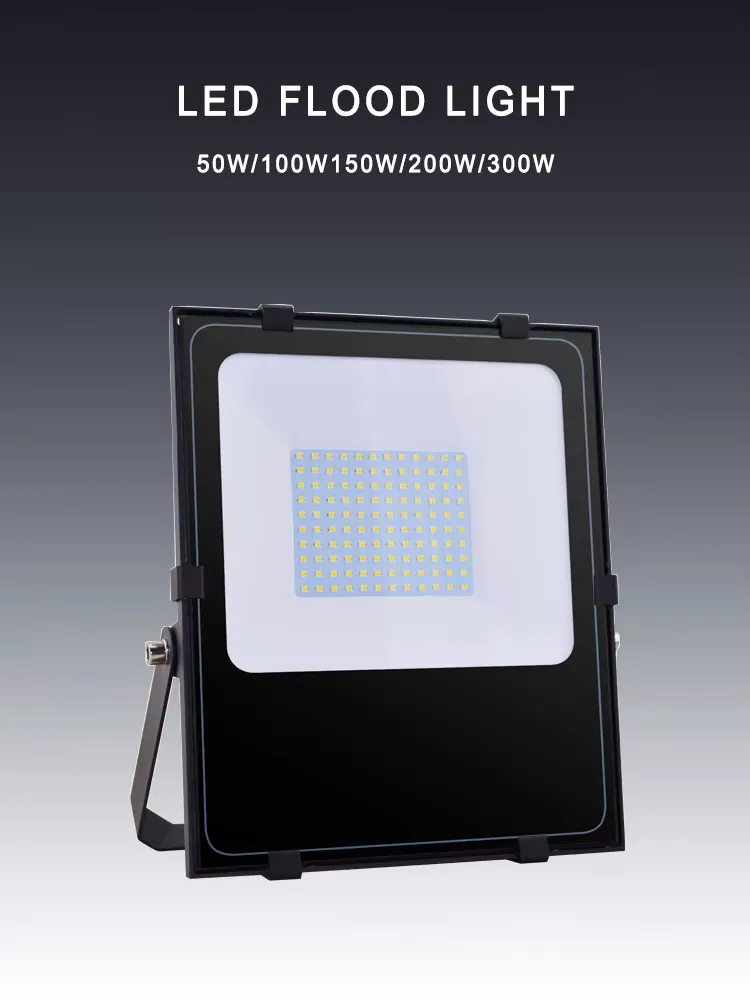

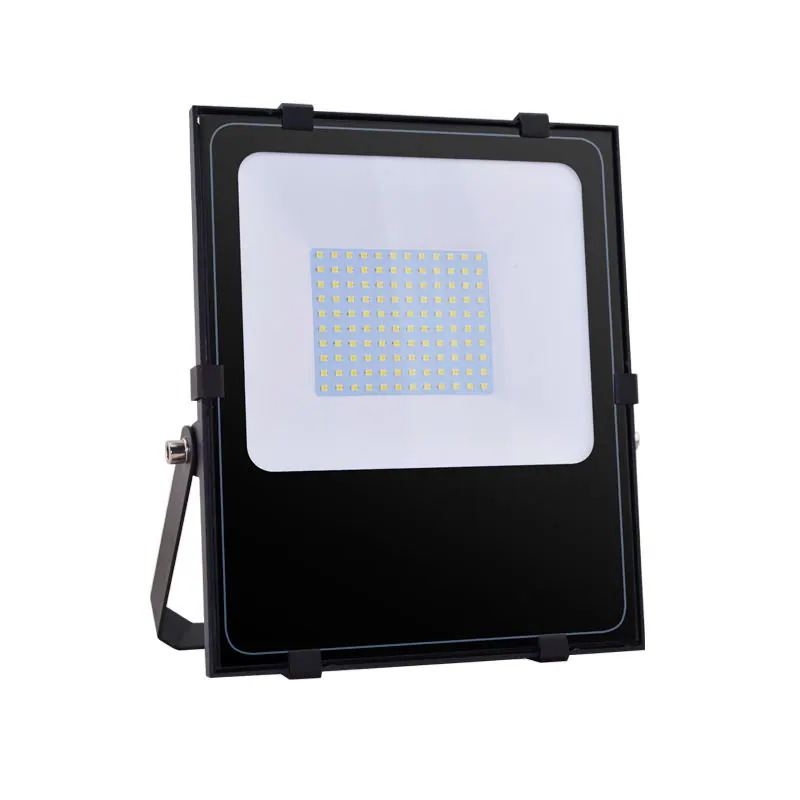

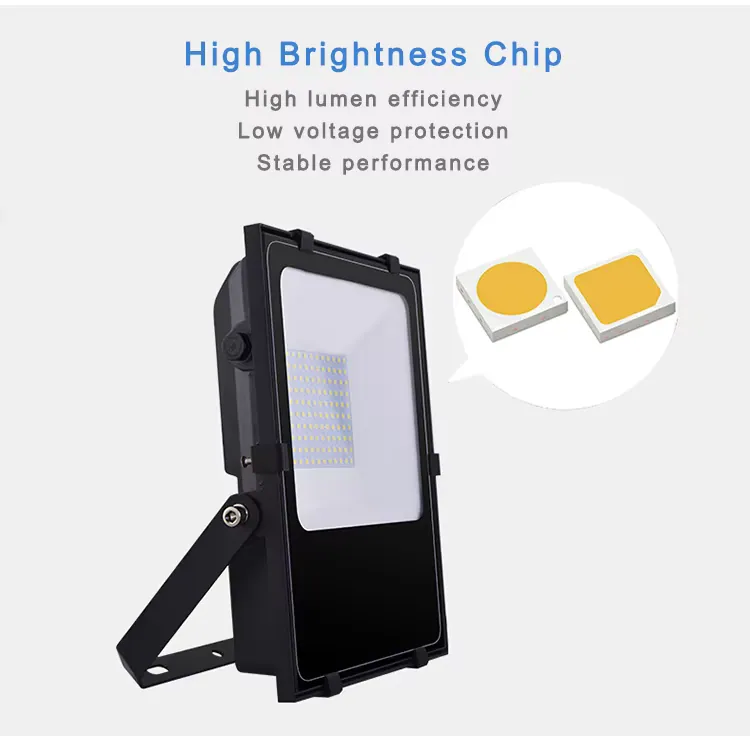

The B2 is a modular AC-powered LED flood light available in three body sizes — L295, L349 and L405mm — carrying 96, 144 and 192 SMD 3030 emitters respectively. The dual 70°+140° / 120° beam pattern lets one fixture cover both wide-area wash and longer-throw accent duty.

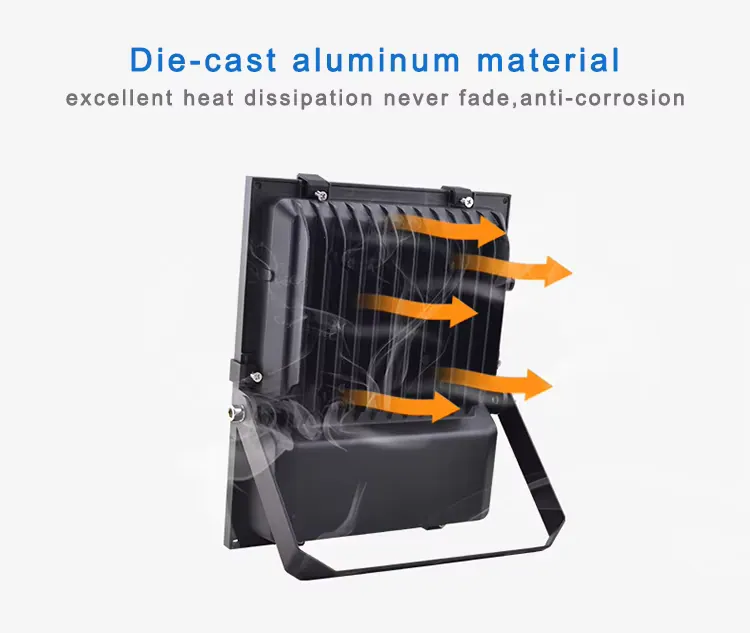

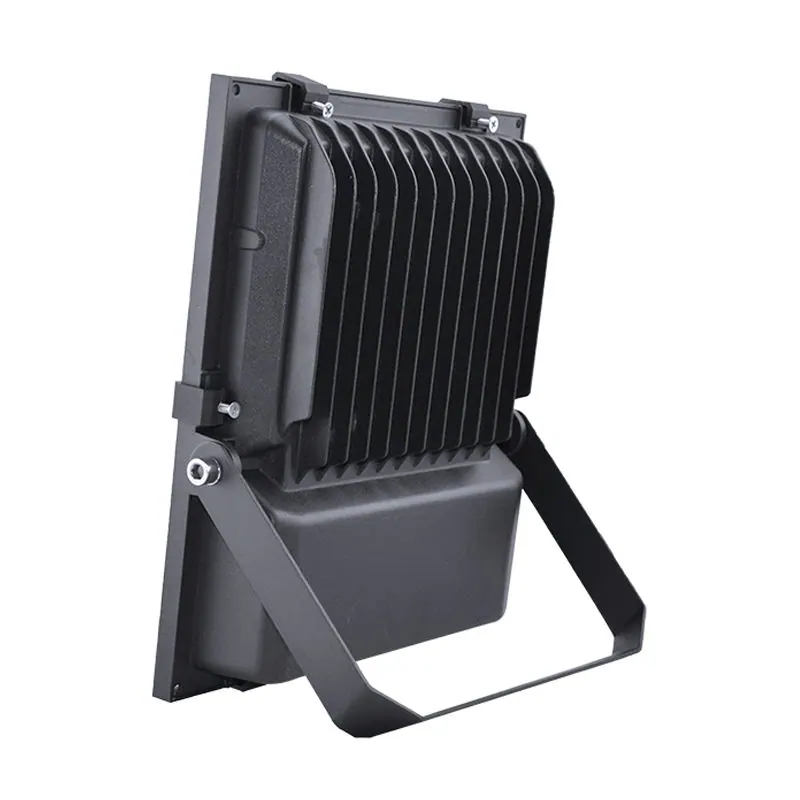

A CRI of 75Ra or better keeps colours accurate on facades, signage and sports surfaces. Die-cast aluminium housing with PC lens, IP65 sealing, and an adjustable bracket for wall, pole or ground mounting. Colour temperature is selectable at 3000K / 4000K / 6000K, with custom colours on request.
Common applications: building facades, billboards and signage, sports courts, car parks, industrial yards, loading docks, and architectural accent lighting.

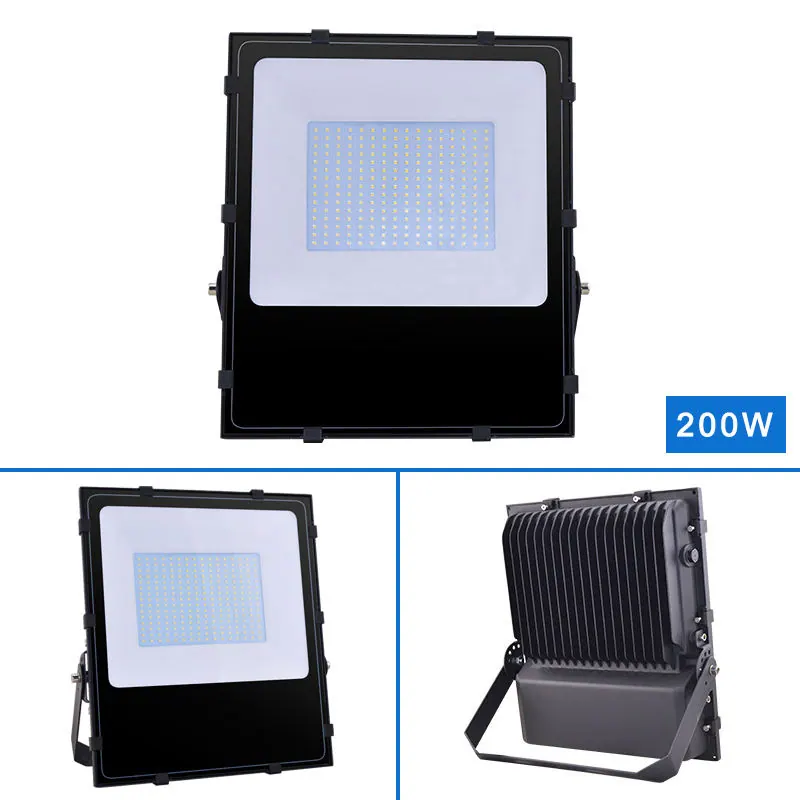

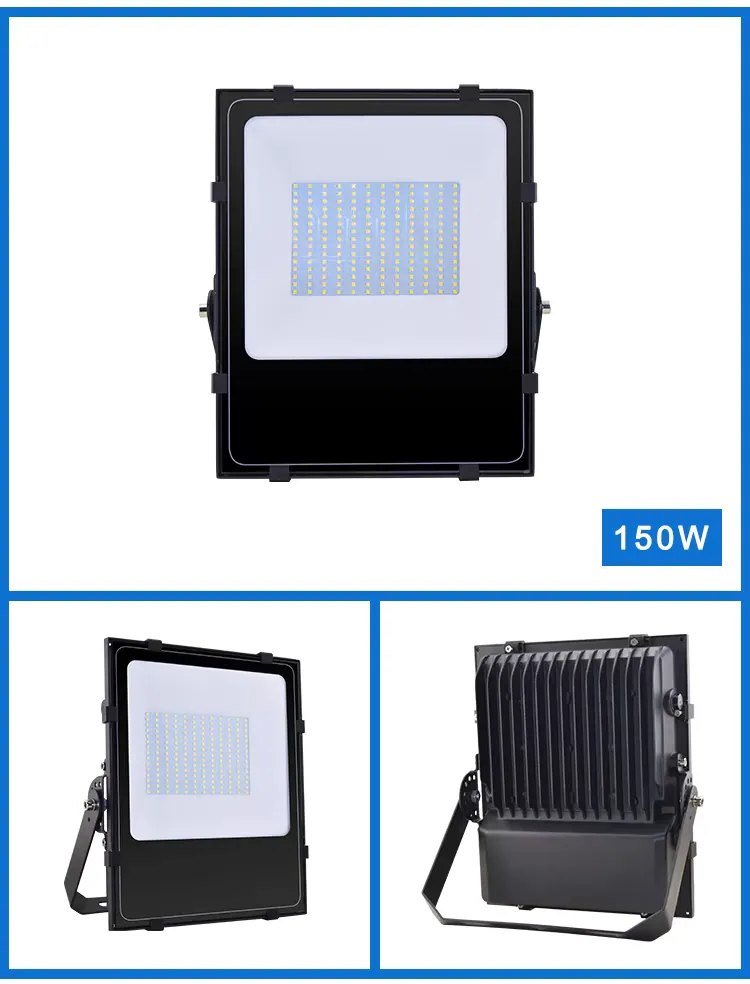

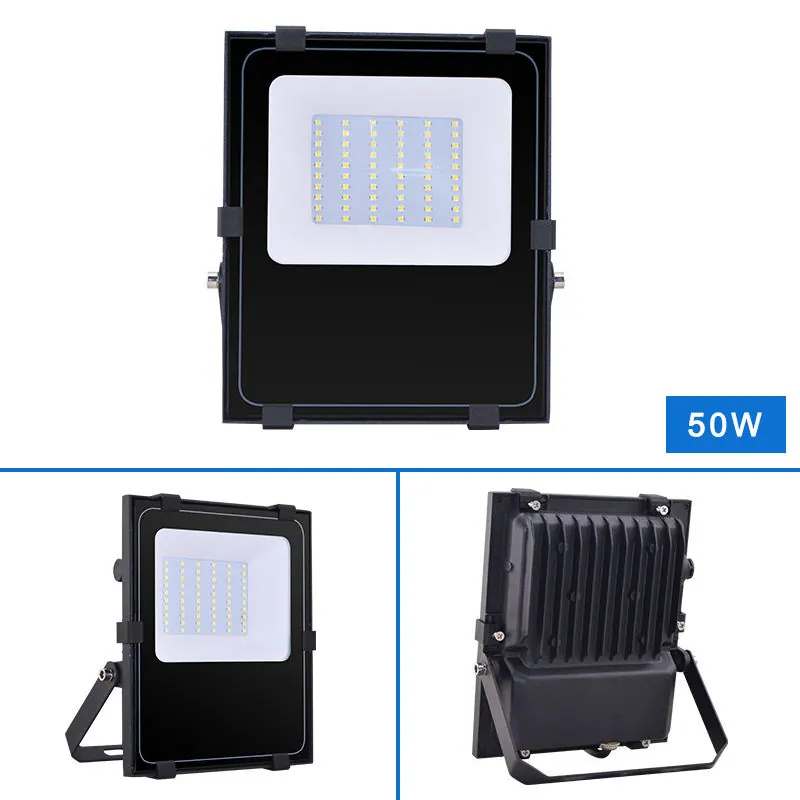

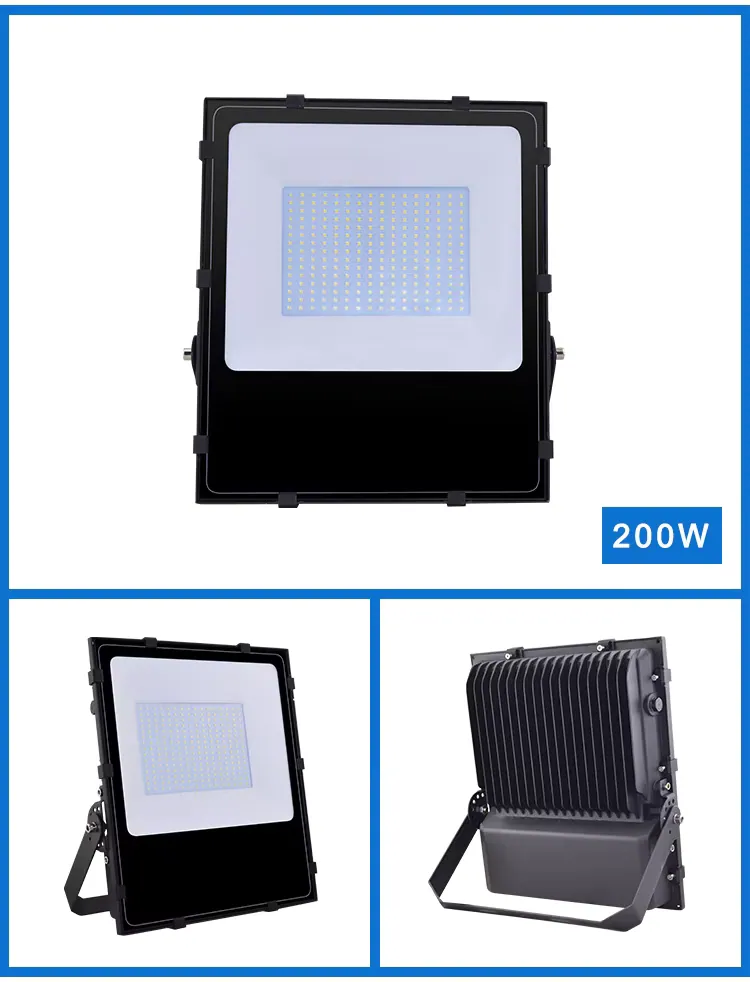

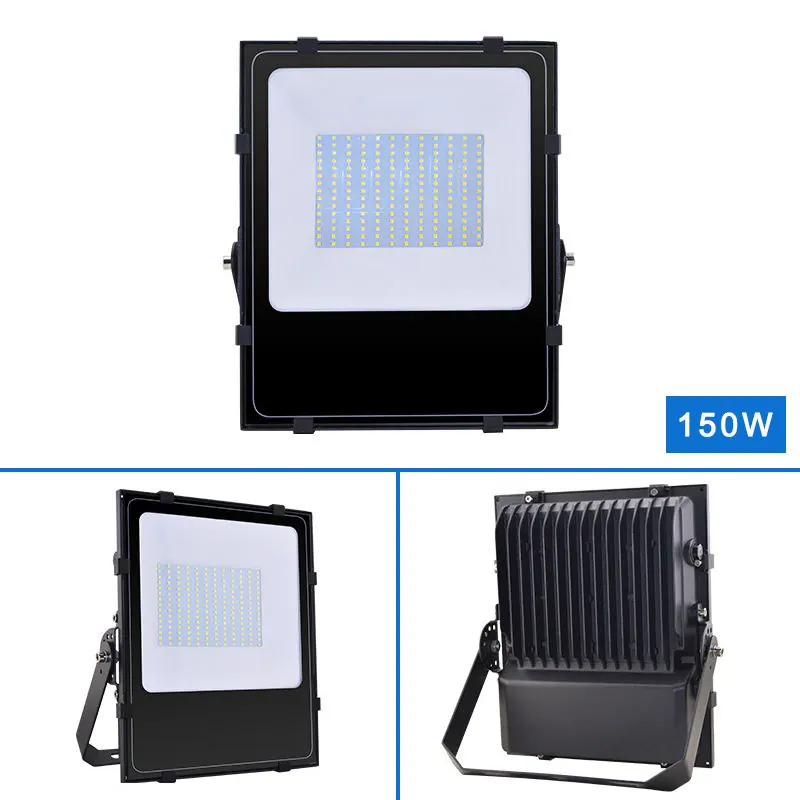

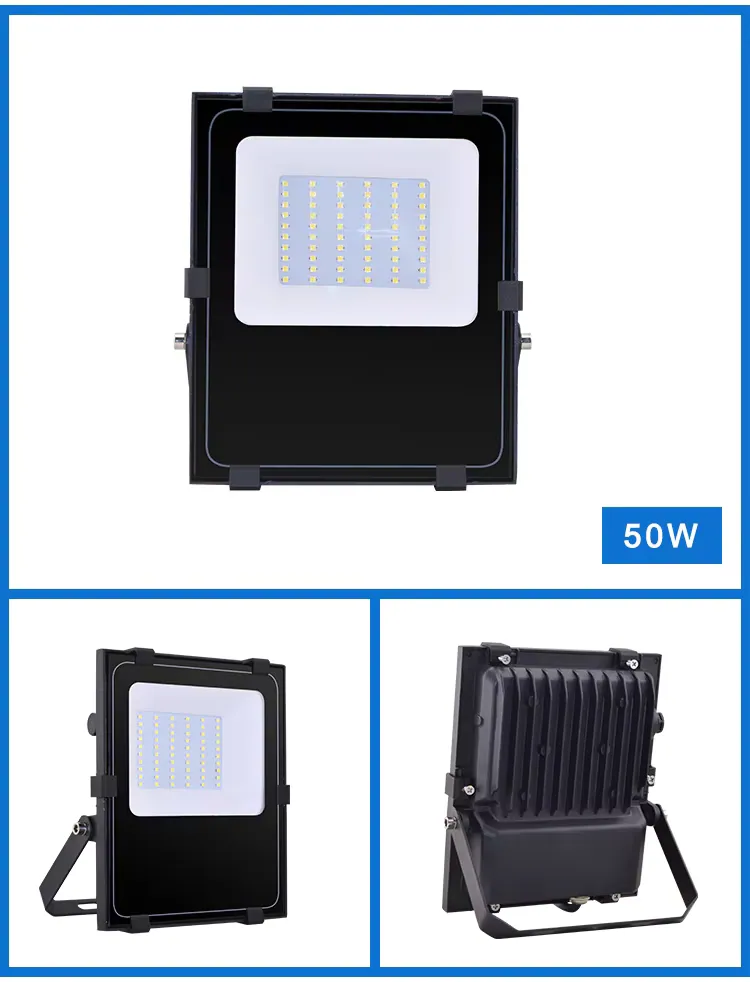

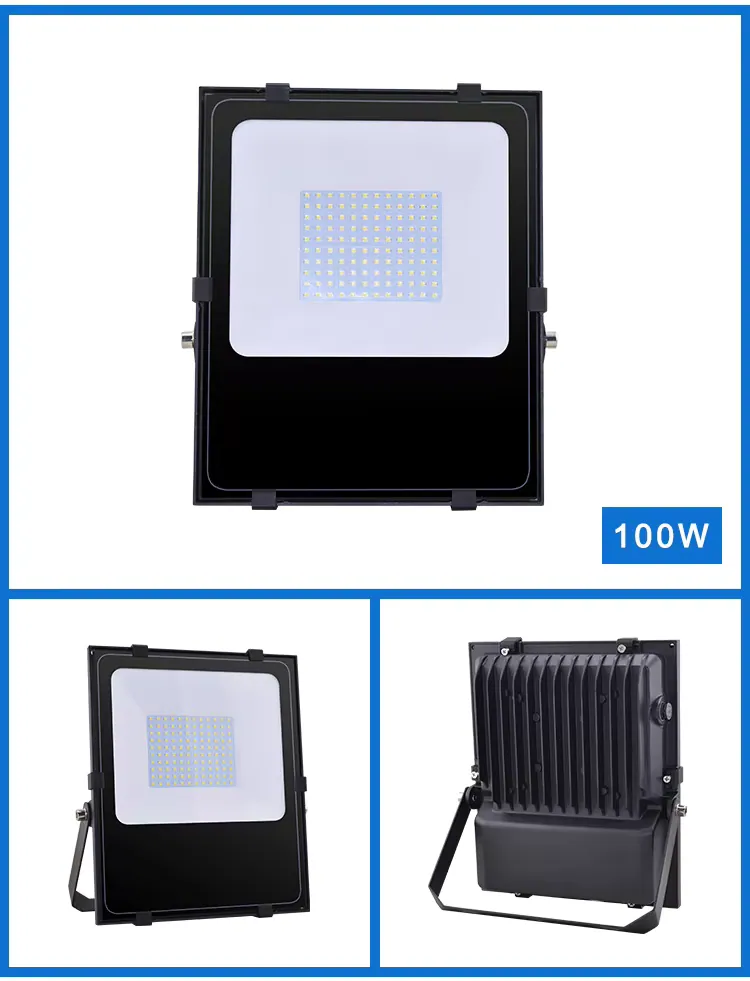

产品细节
近距离观察。
尺寸结构、应用现场、认证文件。 点击任意缩略图查看大图。
9 张细节图
可选型号
3 种配置。
同一产品族，多种功率与尺寸。按项目灯杆高度与照明需求选对应 SKU。
| SKU | LED 数 | 尺寸 |
|---|---|---|
| B2-96 | 96 | L295*W210*H70MM |
| B2-144 | 144 | L349*W249*H70MM |
| B2-192 | 192 | L405*W290*H70MM |
质保多久？
整灯 3 年，LED 模组 5 年，太阳能板 10 年。任何问题由我们承担换货。
起订量是多少？
标准款 10 套起订；完全定制款 50 套起订；1-3 套样品可现货发货（需加少量加急费）。
交期多久？
样品 7-15 天；500 套以下批量 15-25 天；500-2000 套 25-35 天。每次报价都会确认准确交期。
怎么安装？
每批货都附纸质安装指南。多数灯具用 4 颗 M8 螺栓固定到标准 60mm 灯杆，无需特殊工具。
