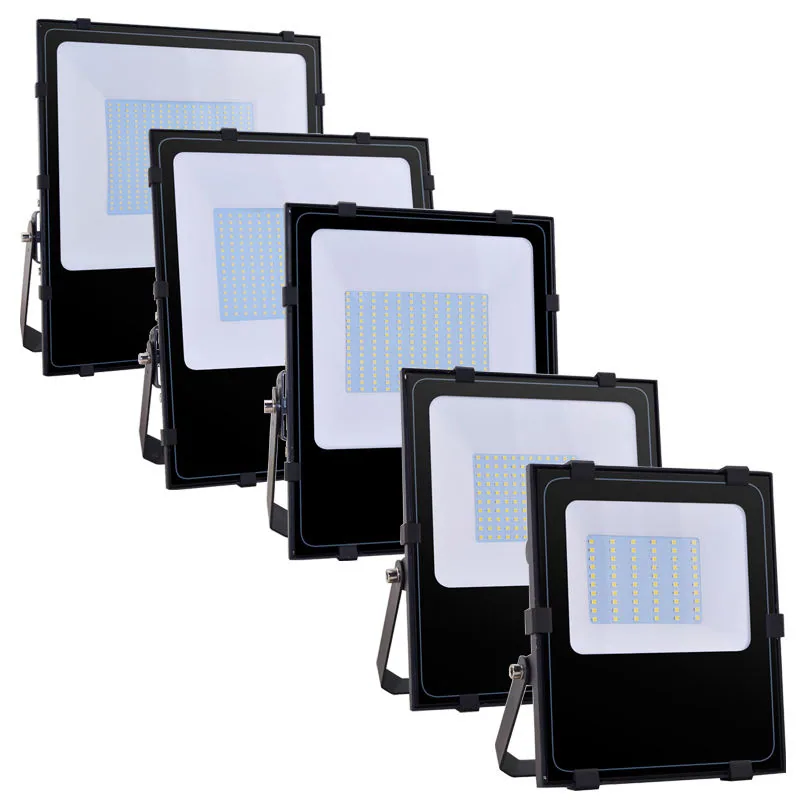

B2 Modular LED Flood Light (3 Sizes)
Modular AC LED flood light in three sizes (96 / 144 / 192 LEDs), SMD 3030, CRI≥75Ra, dual 70°+140° beam, IP65.
7 items · Click thumbnails to view
ac led
ML5 Modular LED Street Light (3 Sizes)
Model: ML5
Modular AC LED street light in three sizes (96 / 144 / 192 SMD 3030), AC 85-305V, for 6-15m mounting.
Warranty
3-5 yr
MOQ
10 pcs
Lead time
15-25d
CE
Certified
RoHS
Certified
ISO 9001
Certified
Technical data
Specs, plain.
Every value verified on the production line. Need a parameter not listed? Ask us.
| LED | SMD 3030 |
|---|---|
| Input Voltage | AC 85-305V |

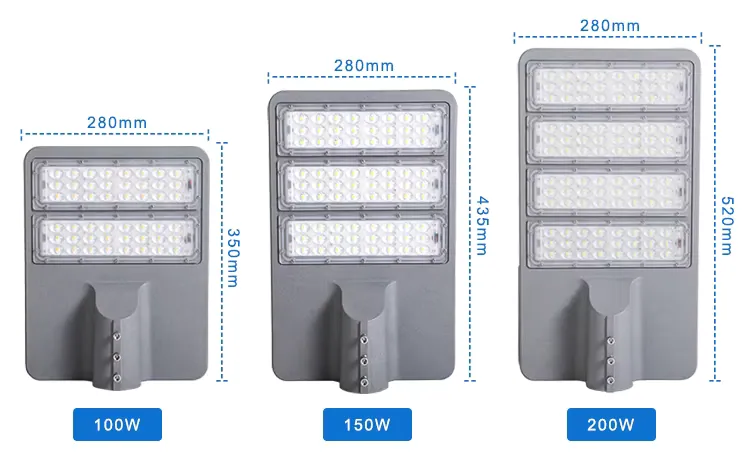

| Size Options | L350*W280*H125MM / L435*W280*H125MM / L520*W280*H125MM |
| LED Quantity Options | 96pcs / 144pcs / 192pcs |
| Installation Height | 6-8m / 8-10m / 12-15m |
| Material | Aluminum + PC |
| Warranty | 3 years |
About this product
What it does.

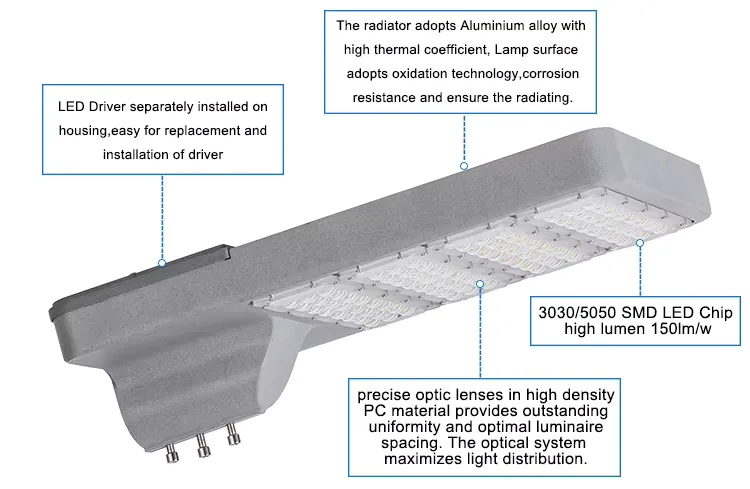

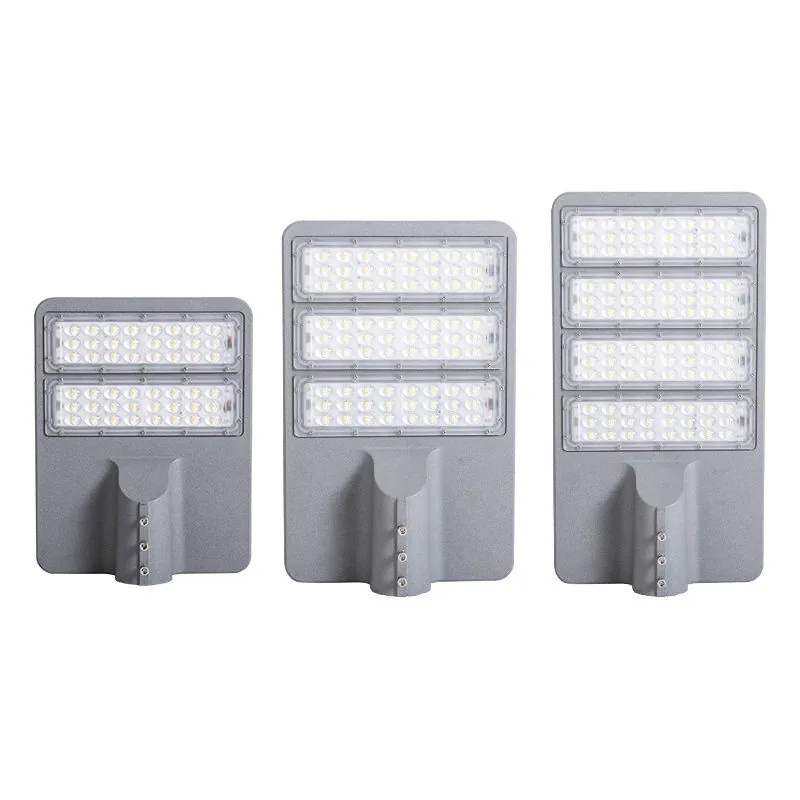

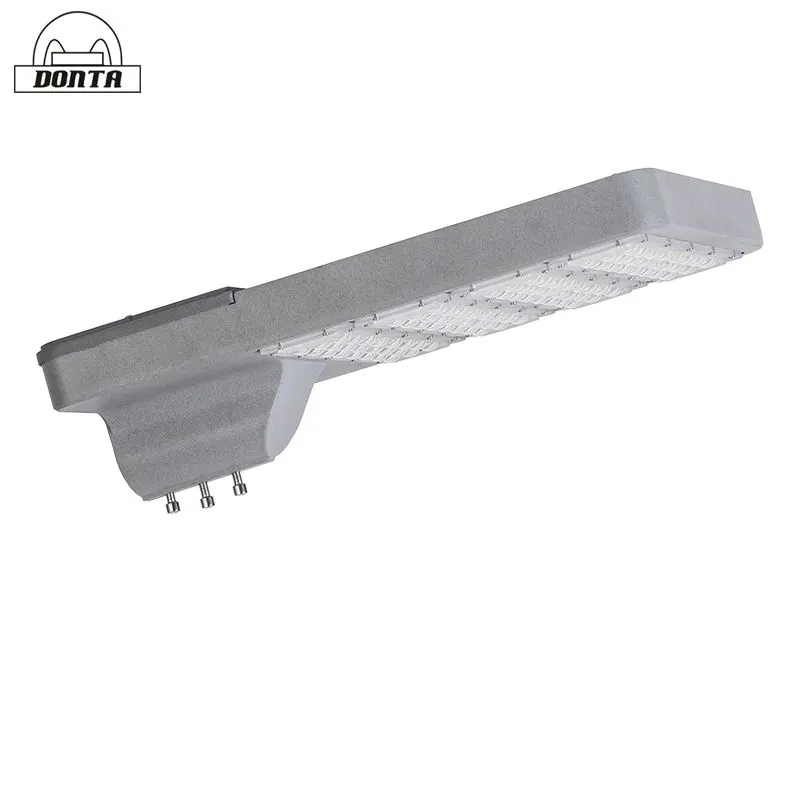

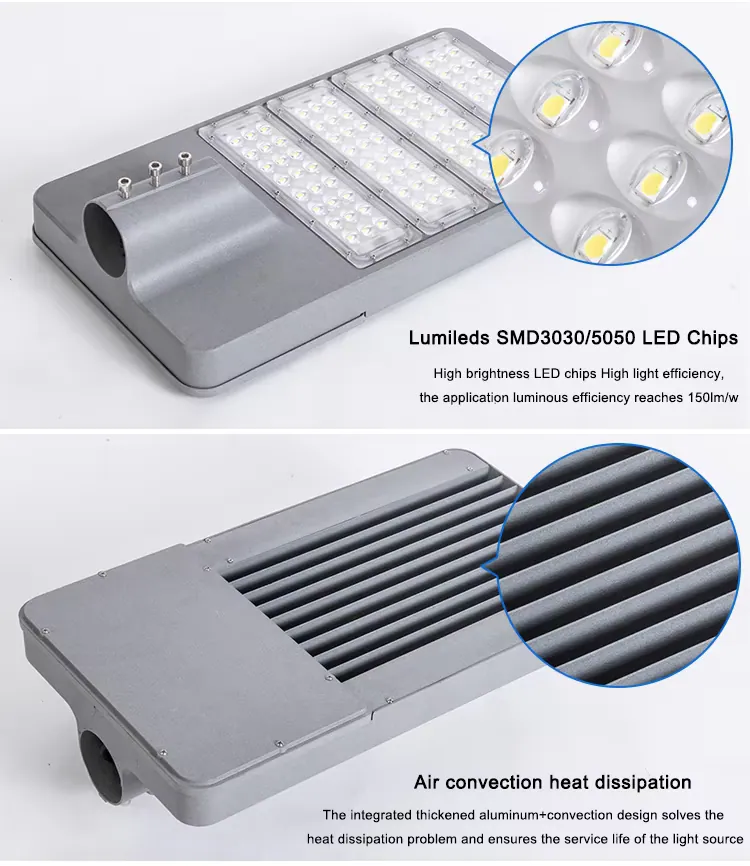

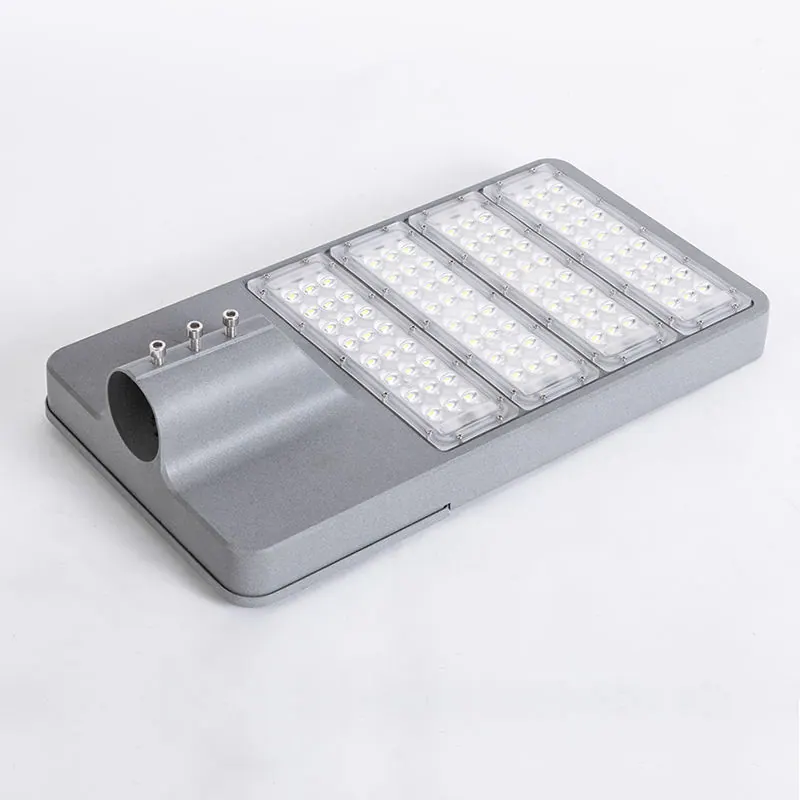

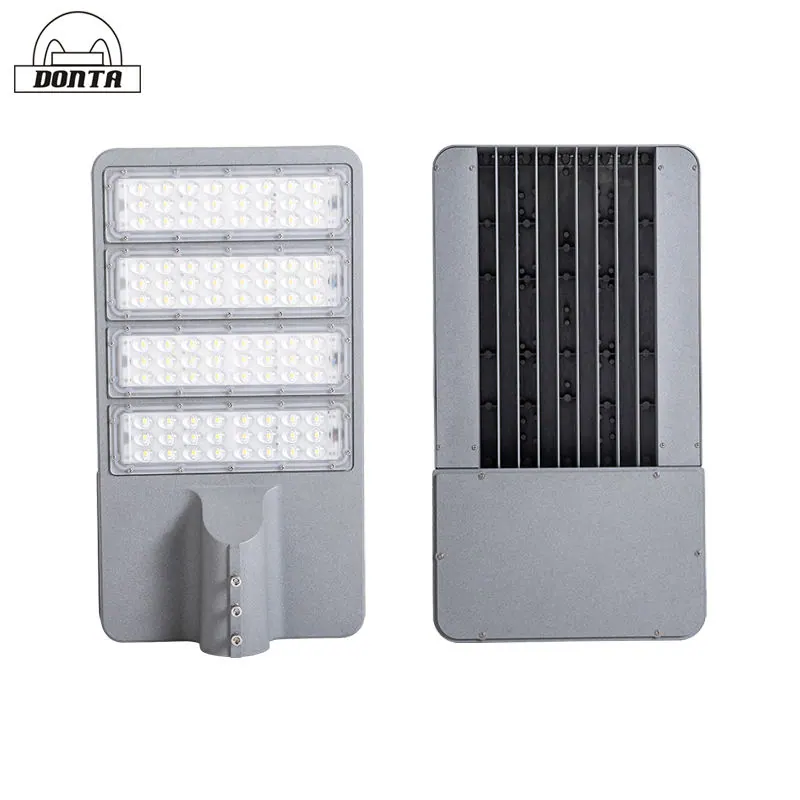

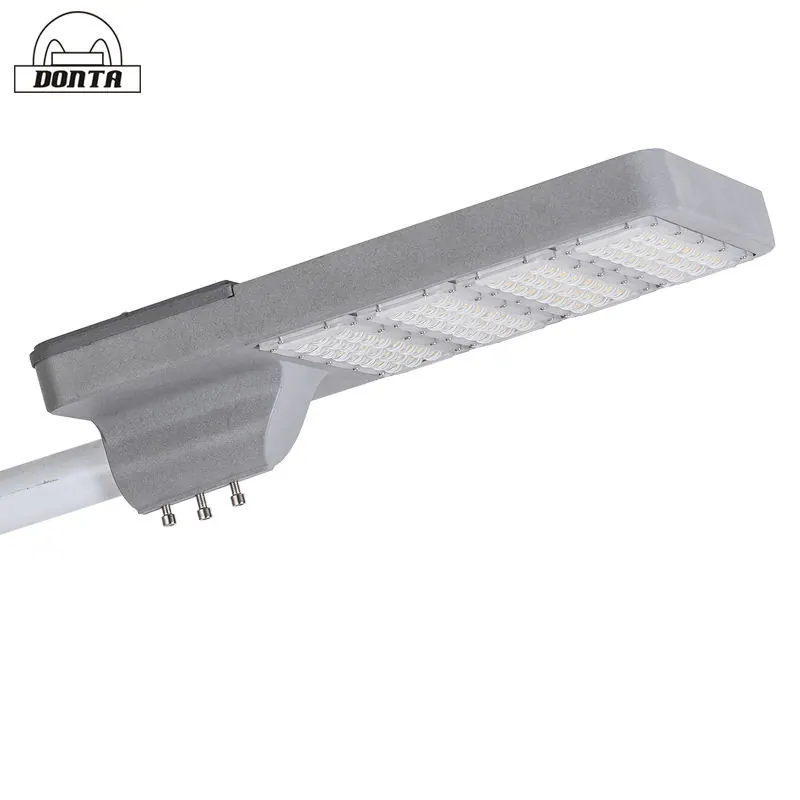

The ML5 is a modular AC-powered LED street light offered in three body lengths — L350, L435 and L520mm — with 96, 144 and 192 SMD 3030 emitters. The modular construction means individual LED boards and the driver can be replaced in the field rather than swapping the whole fixture.

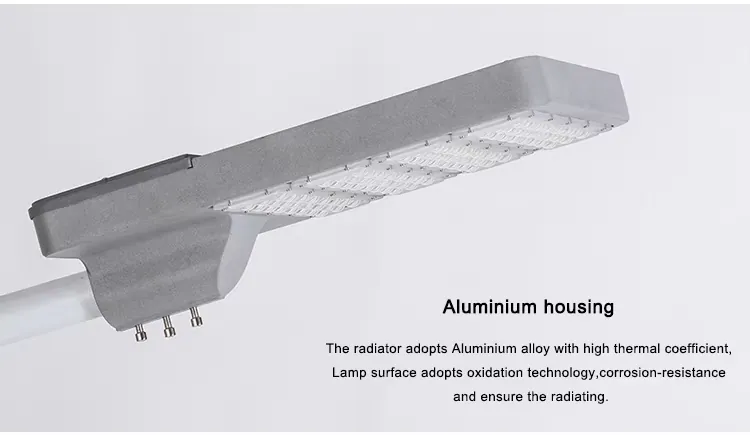

Universal AC 85-305V input covers most global mains supplies. The three sizes map cleanly onto mounting heights of 6-8m, 8-10m and 12-15m, so a single series covers residential streets through to arterial roads. Die-cast aluminium housing, PC lens, and a tool-less opening for maintenance.

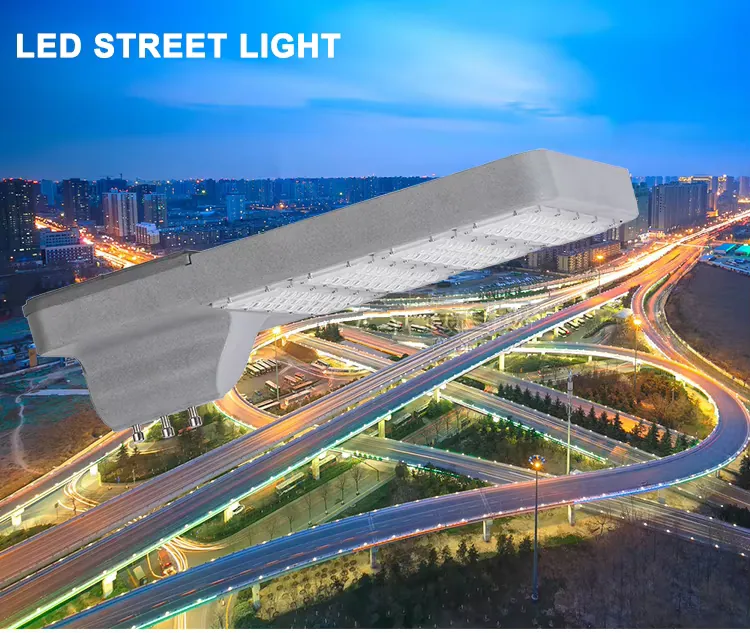

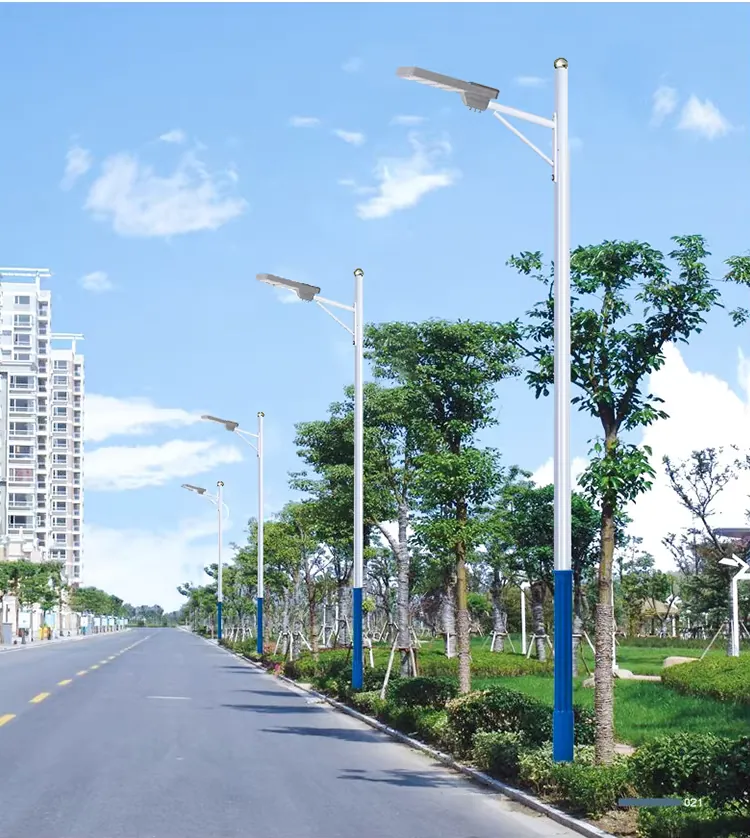

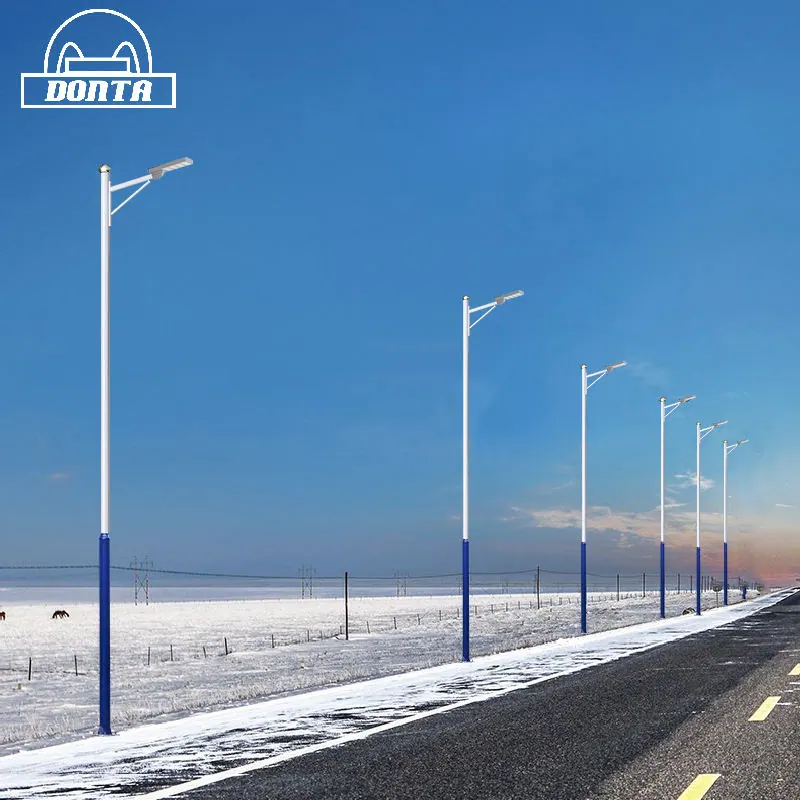

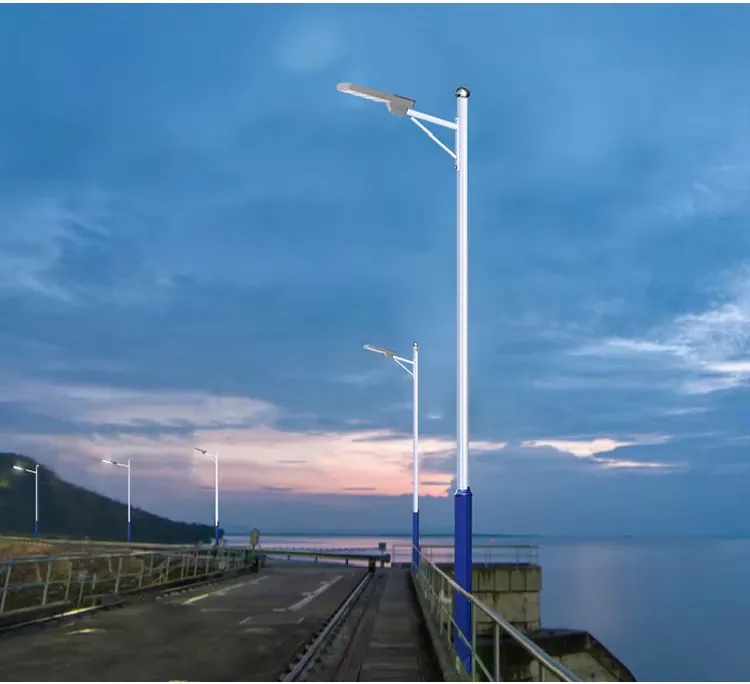

Common applications: residential streets, secondary roads, industrial parks, car parks, campus roads, and municipal lighting retrofits.
Product details
Closer look.
Dimensions, structure, application scenes, and certification documents. Click any tile to view at full size.
9 details
Available variants
3 configurations.
One product family, multiple wattage and size configurations. Pick the right SKU for your project's pole height and lighting requirement.
| SKU | LED Qty | Size |
|---|---|---|
| ML5-2 | 96 | L350*W280*H125MM |
| ML5-3 | 144 | L435*W280*H125MM |
| ML5-4 | 192 | L520*W280*H125MM |
Common questions
Asked & answered.
The things buyers ask us most. Don't see yours? Send a question — we reply within 24 hours.
Generic for category
What is the warranty?
3 years on the full fixture, 5 years on the LED module, 10 years on the solar panel. We replace any defective unit at our cost.
What is the MOQ?
10 pieces for standard models. 50 pieces for fully custom builds. Sample orders of 1-3 pieces ship from stock at a small premium.
What is the lead time?
7-15 days for samples. 15-25 days for bulk orders under 500 pieces. 25-35 days for 500-2000 pieces. We confirm exact lead time with every quote.
How do I install it?
Every shipment includes a printed installation guide. Most fixtures mount to a standard 60mm pole tenon with 4 M8 bolts. No special tools needed.
ac led

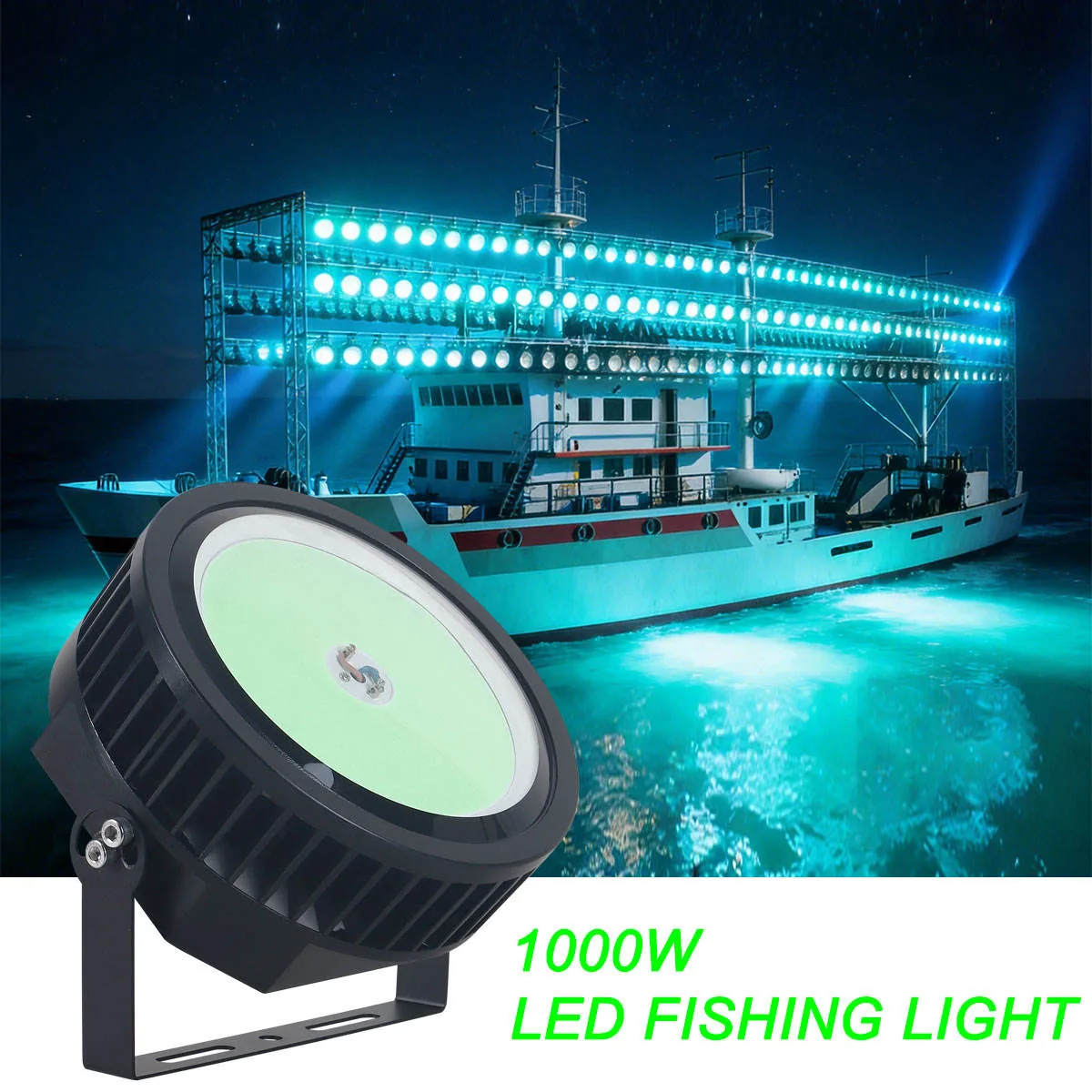

FL LED Fishing Light (1000W, AC Powered)
1000W COB LED fishing light for commercial vessels. IP65, 110° adjustable, full-spectrum color options.
ac led

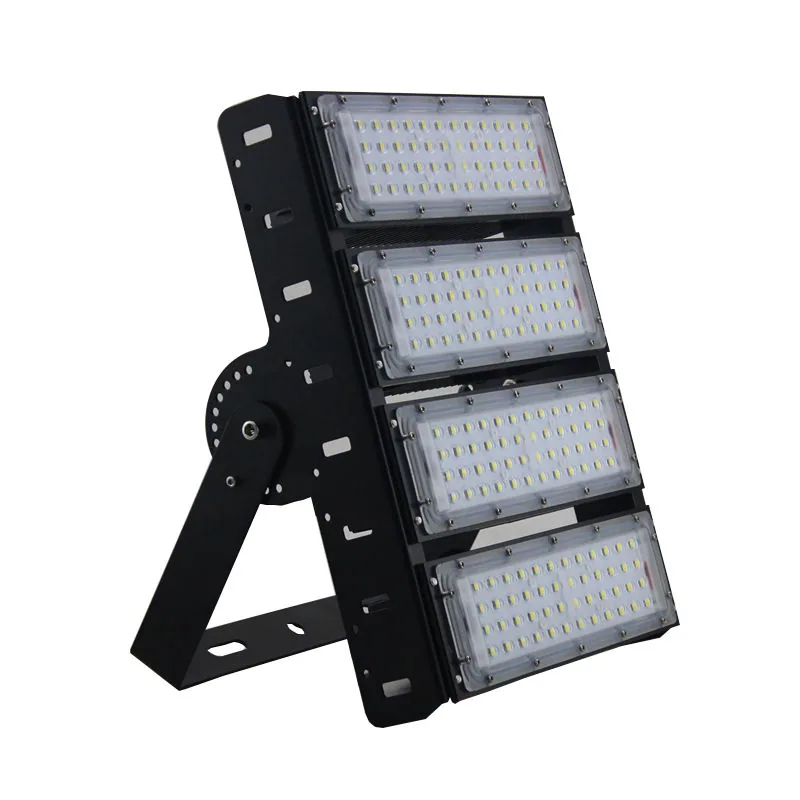

M2 Modular LED Flood Light (50W-1000W, 10 Wattage Options)
High-power modular LED flood light. SMD 3030 LED, 6kV surge protection, IP65, 180° adjustable bracket.
ac led

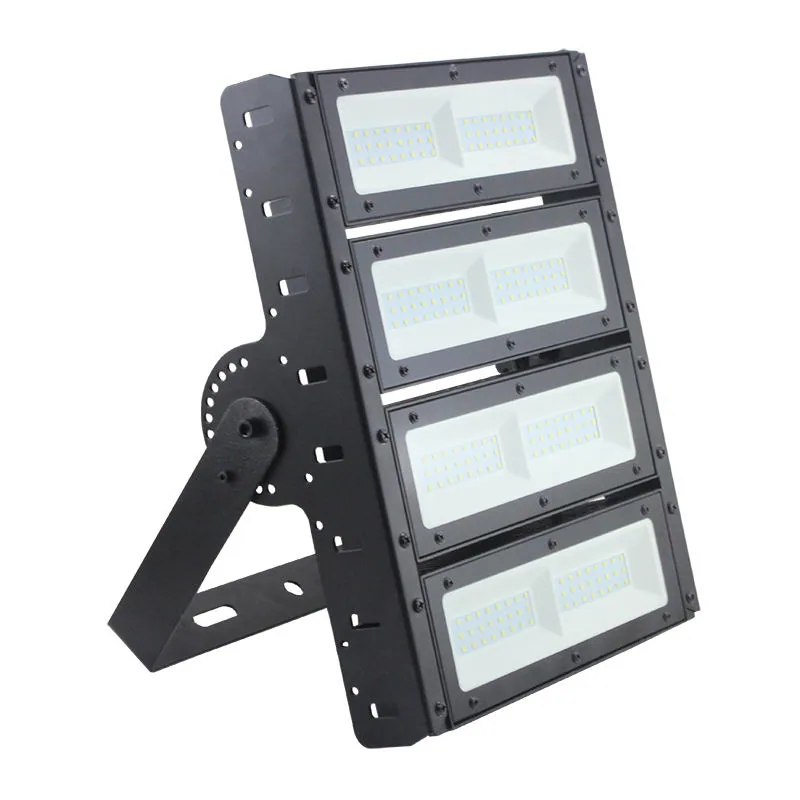

M23 Modular LED Flood Light (50W-1000W, 10 Wattage Options)
High-power modular LED flood light. SMD 3030 LED, 6kV surge protection, IP65, 180° adjustable bracket.
ac led

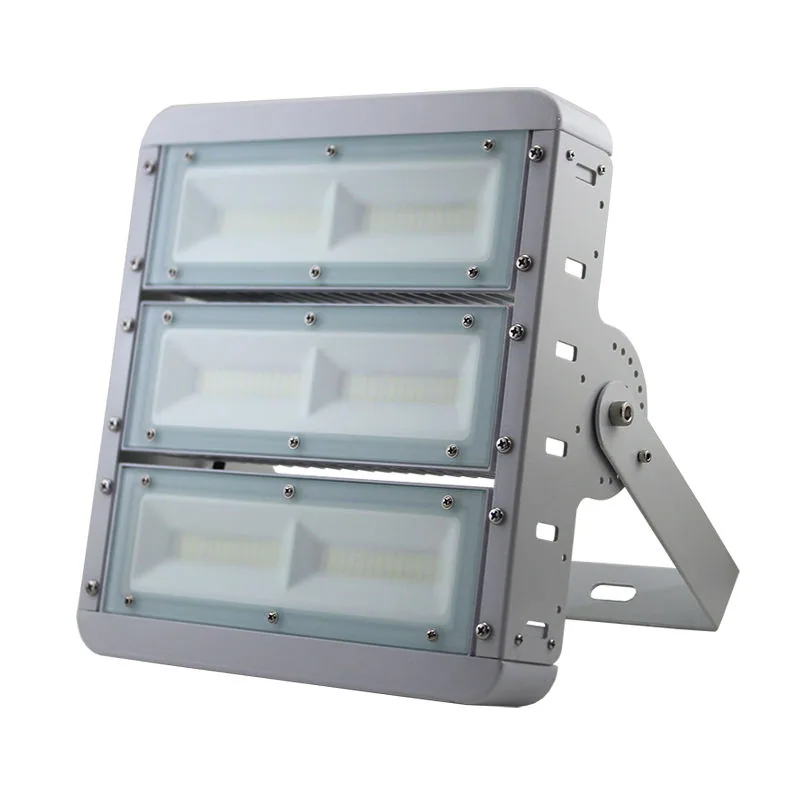

M6 Modular LED Flood Light (M6-2 / M6-3 / M6-4)
High-power modular LED flood light. SMD 3030/5050 LED, 6kV surge protection, IP65, 180° adjustable bracket.
ac led

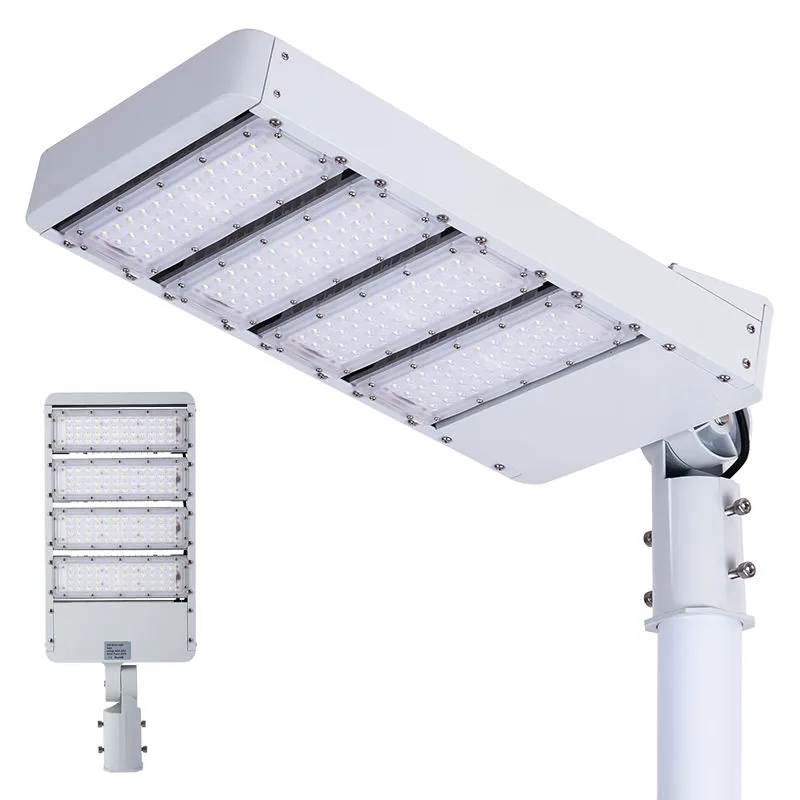

ML6 Modular LED Street Light (AC Powered)
