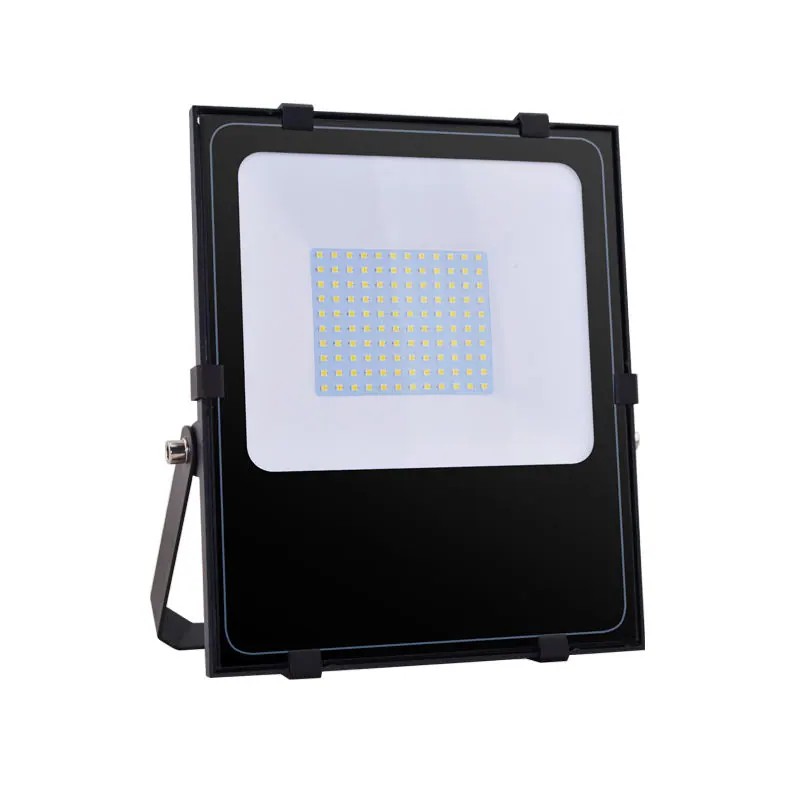

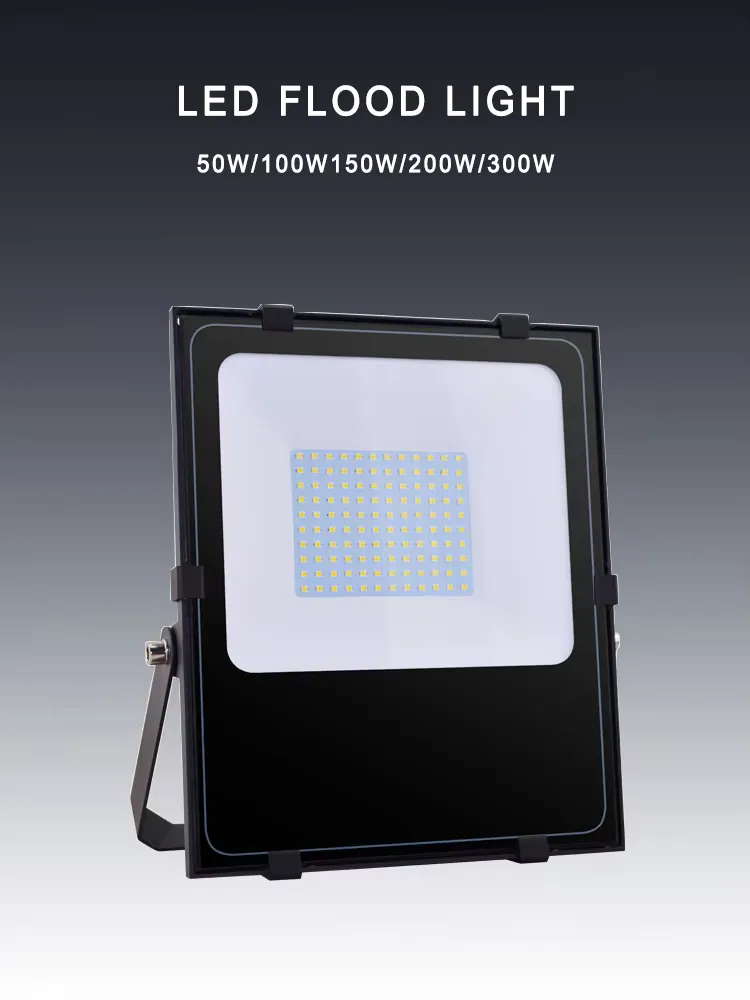

B2 Modular LED Flood Light (3 Sizes)
Model: B2
Modular AC LED flood light in three sizes (96 / 144 / 192 LEDs), SMD 3030, CRI≥75Ra, dual 70°+140° beam, IP65.
Warranty
3-5 yr
MOQ
10 pcs
Lead time
15-25d
CE
Certified
RoHS
Certified
ISO 9001
Certified
Technical data
Specs, plain.
Every value verified on the production line. Need a parameter not listed? Ask us.

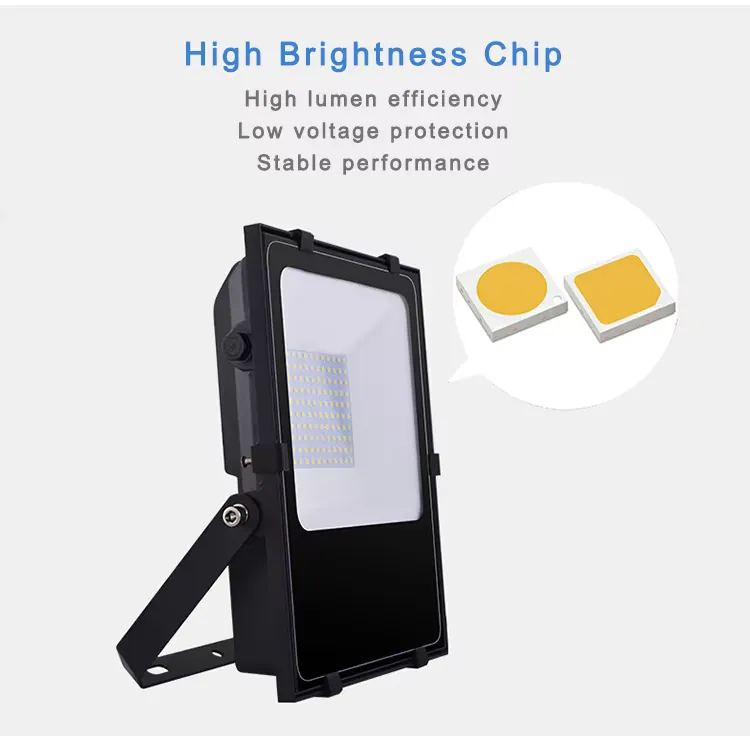

| LED | SMD 3030 |
|---|---|
| CRI | ≥75Ra |
| Beam Angle | 70° + 140° / 120° |
| IP Rating | IP65 |
| Color Temperature | 3000K / 4000K / 6000K |
| Size Options | L295*W210*H70MM / L349*W249*H70MM / L405*W290*H70MM |
| LED Quantity Options | 96pcs / 144pcs / 192pcs |

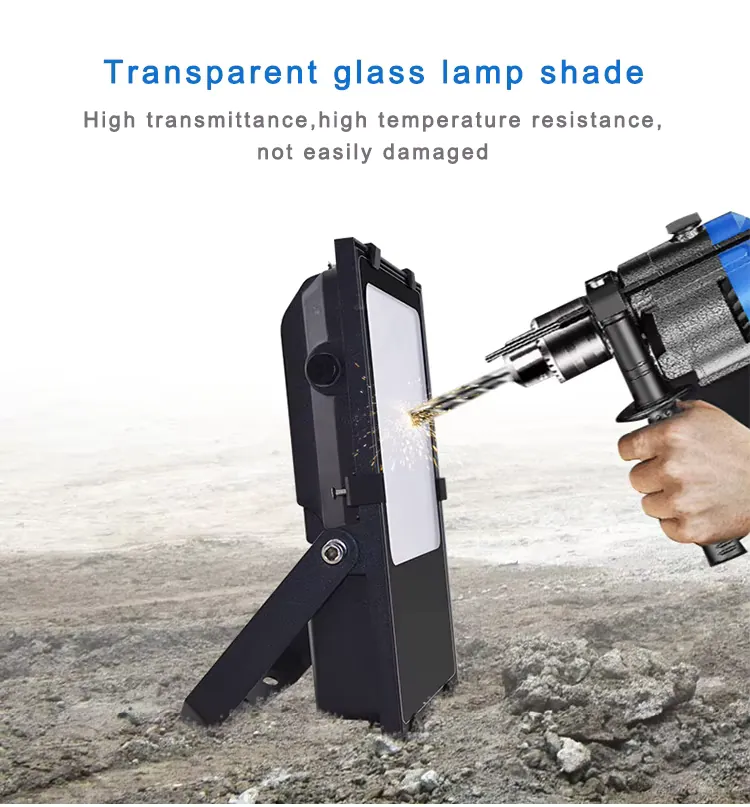

| Material | Aluminum + PC |
| Warranty | 3 years |
About this product
What it does.
The B2 is a modular AC-powered LED flood light available in three body sizes — L295, L349 and L405mm — carrying 96, 144 and 192 SMD 3030 emitters respectively. The dual 70°+140° / 120° beam pattern lets one fixture cover both wide-area wash and longer-throw accent duty.

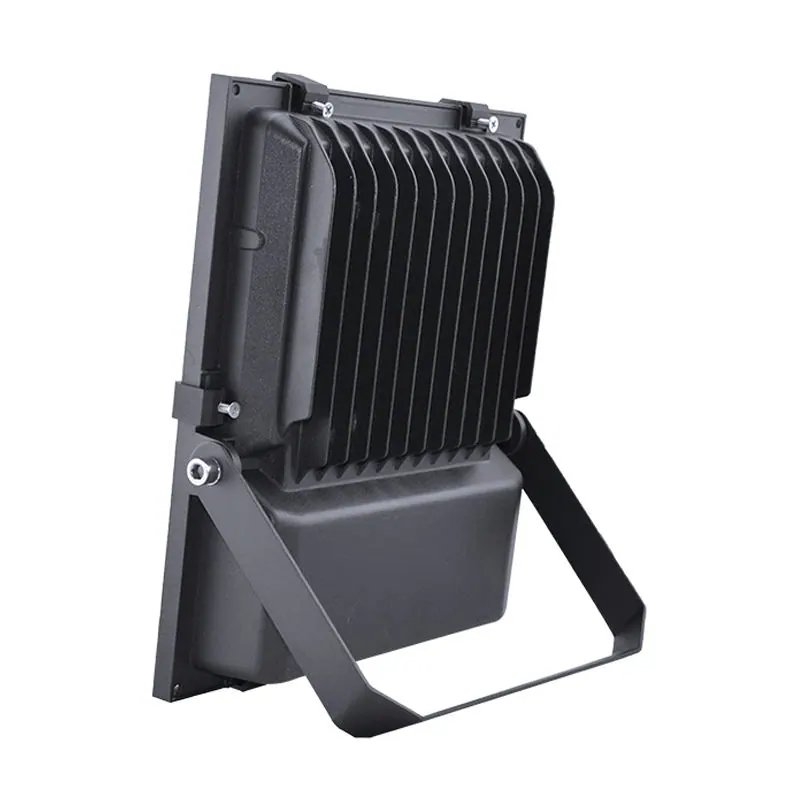

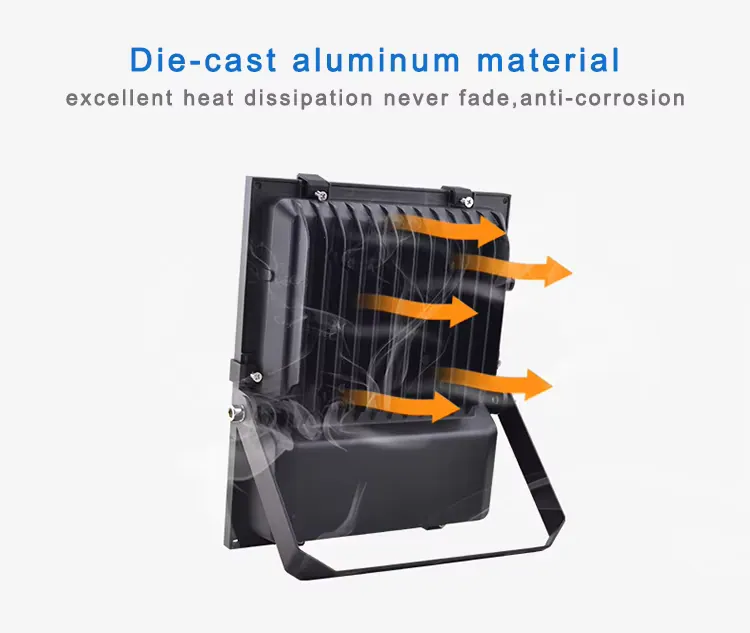

A CRI of 75Ra or better keeps colours accurate on facades, signage and sports surfaces. Die-cast aluminium housing with PC lens, IP65 sealing, and an adjustable bracket for wall, pole or ground mounting. Colour temperature is selectable at 3000K / 4000K / 6000K, with custom colours on request.
Common applications: building facades, billboards and signage, sports courts, car parks, industrial yards, loading docks, and architectural accent lighting.
Product details
Closer look.

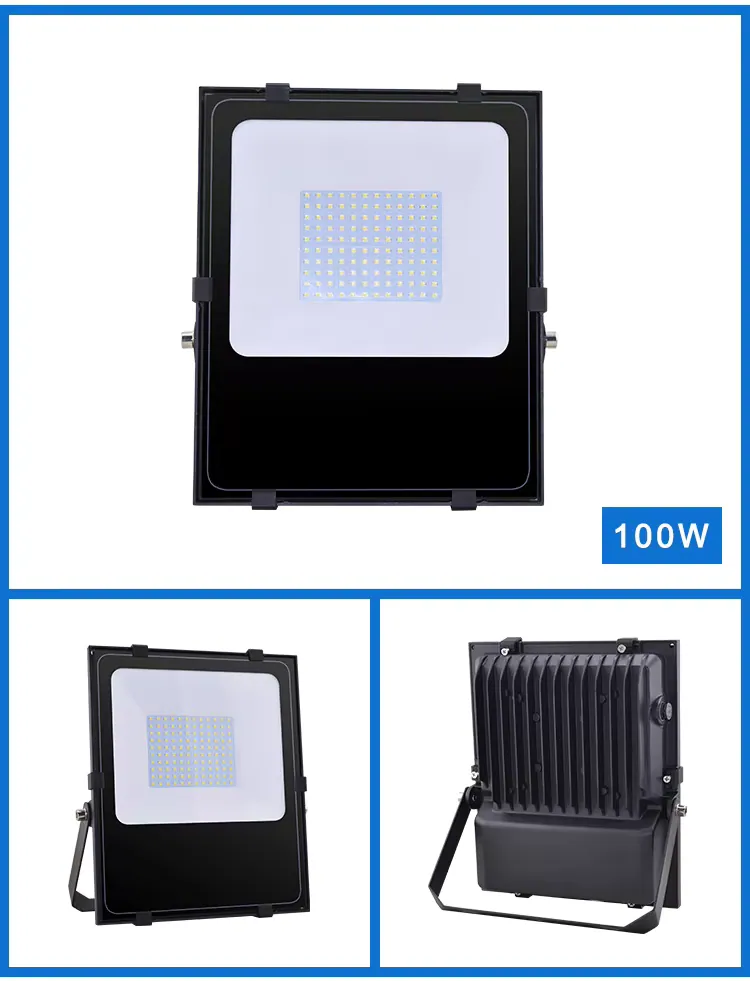

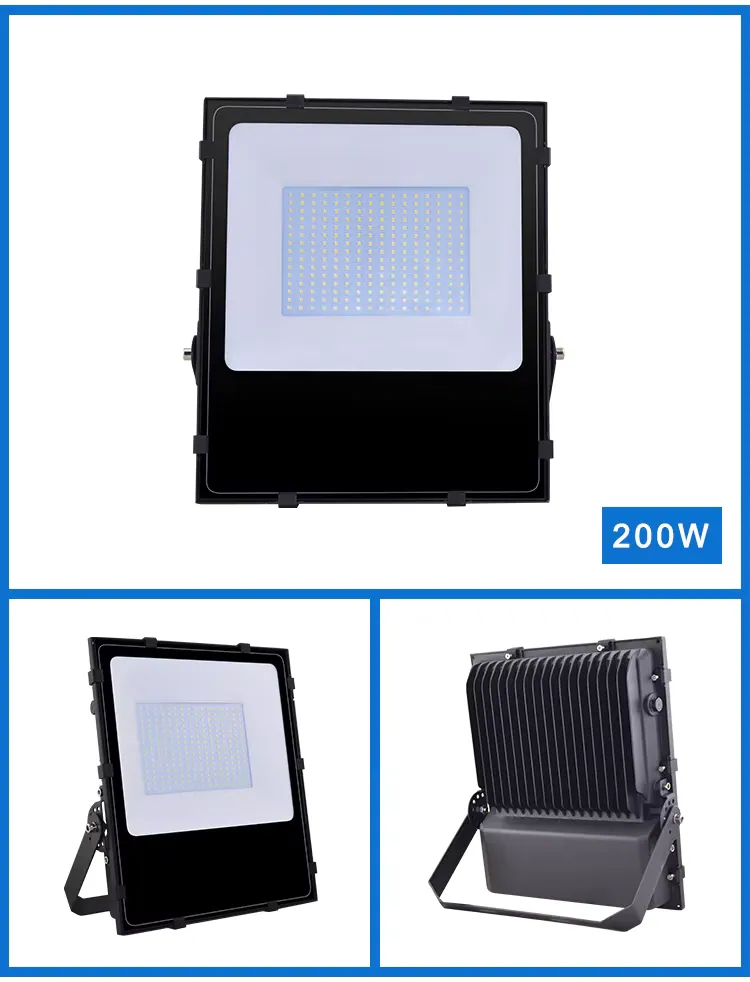

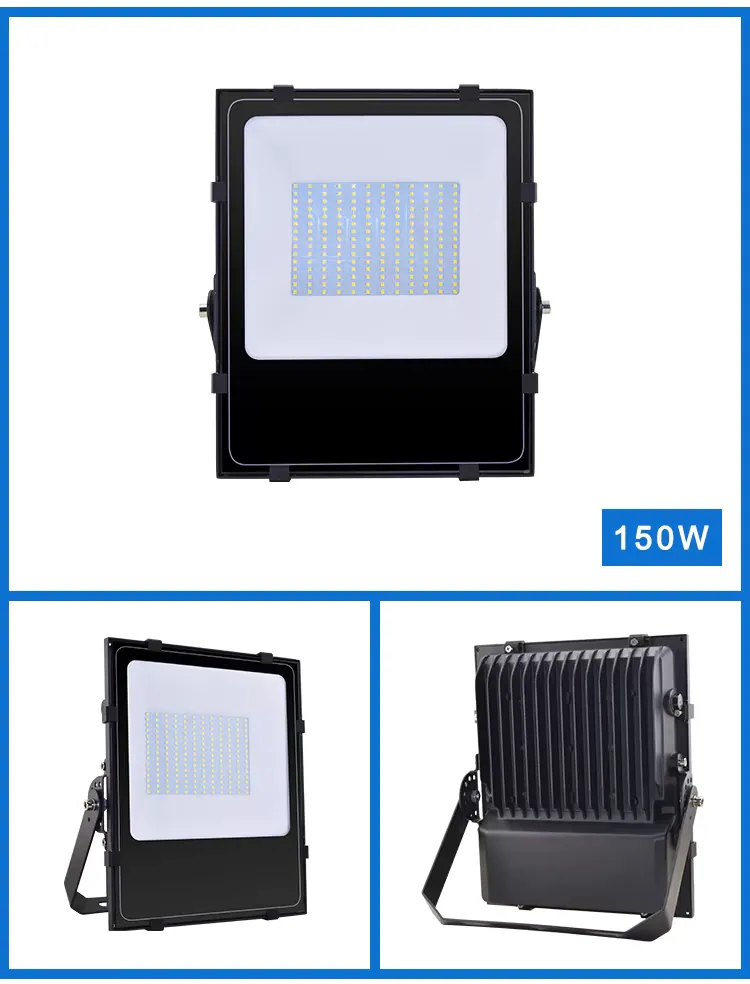

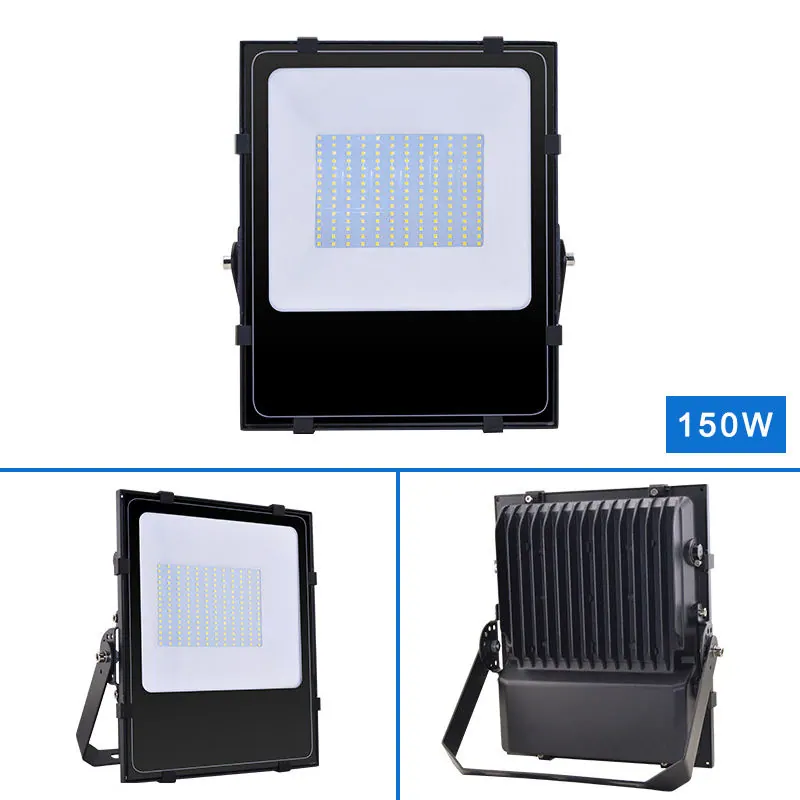

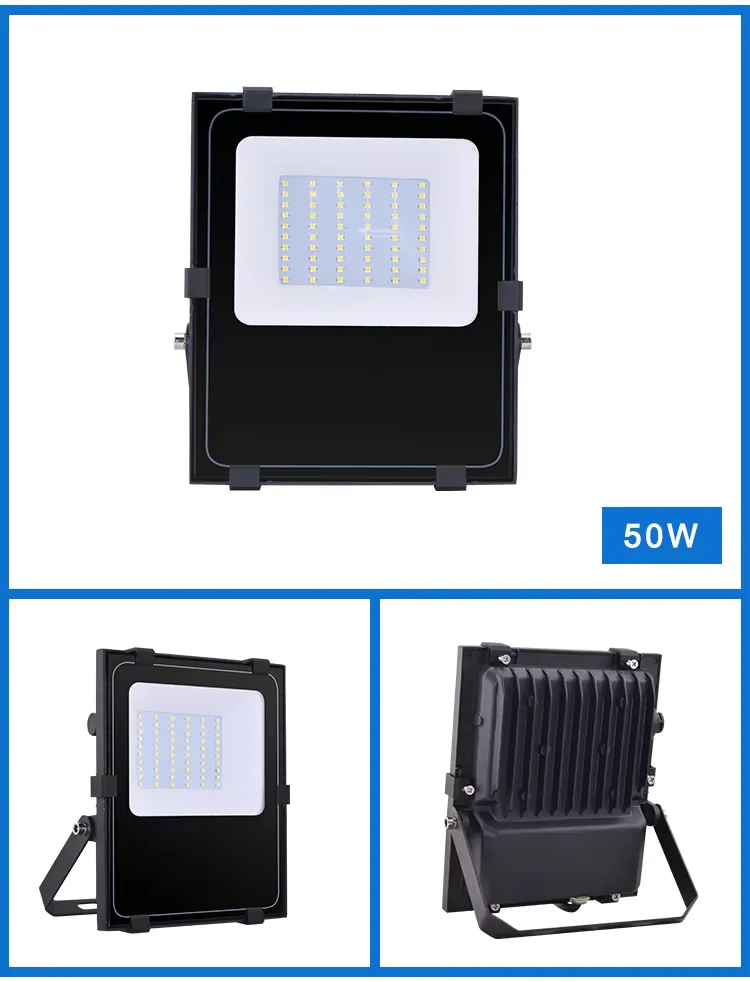

Dimensions, structure, application scenes, and certification documents. Click any tile to view at full size.
9 details
Available variants
3 configurations.

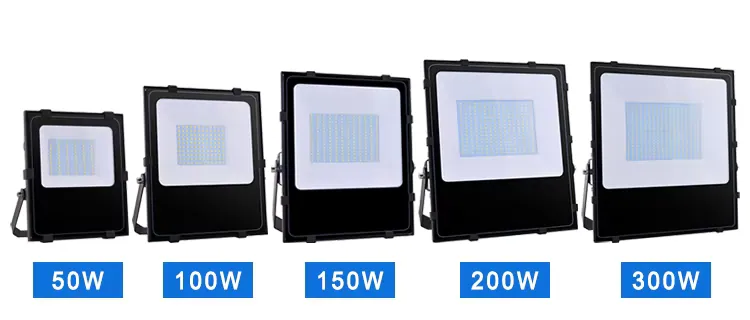

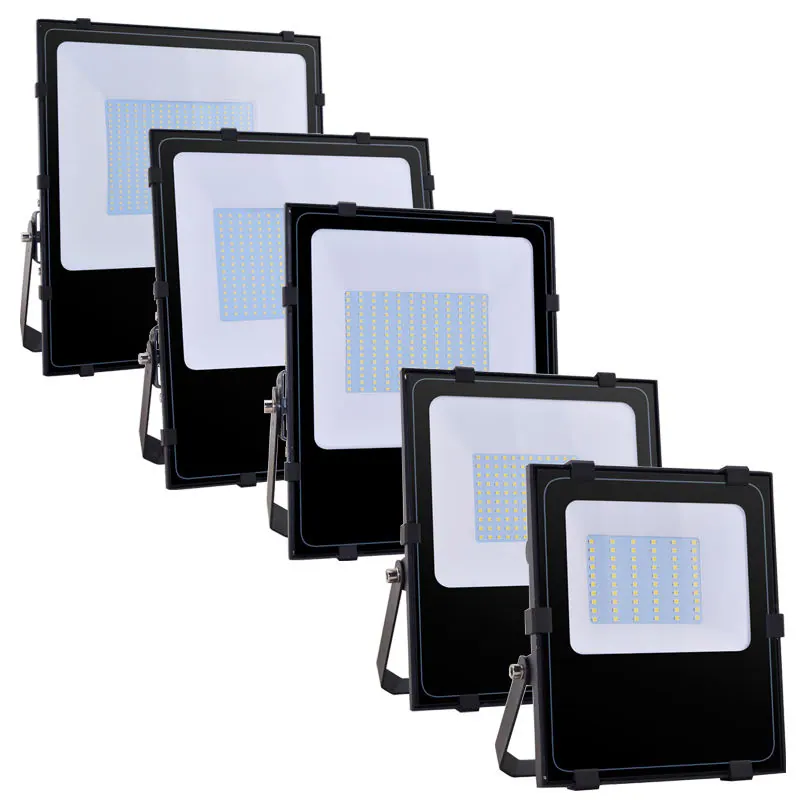

One product family, multiple wattage and size configurations. Pick the right SKU for your project's pole height and lighting requirement.

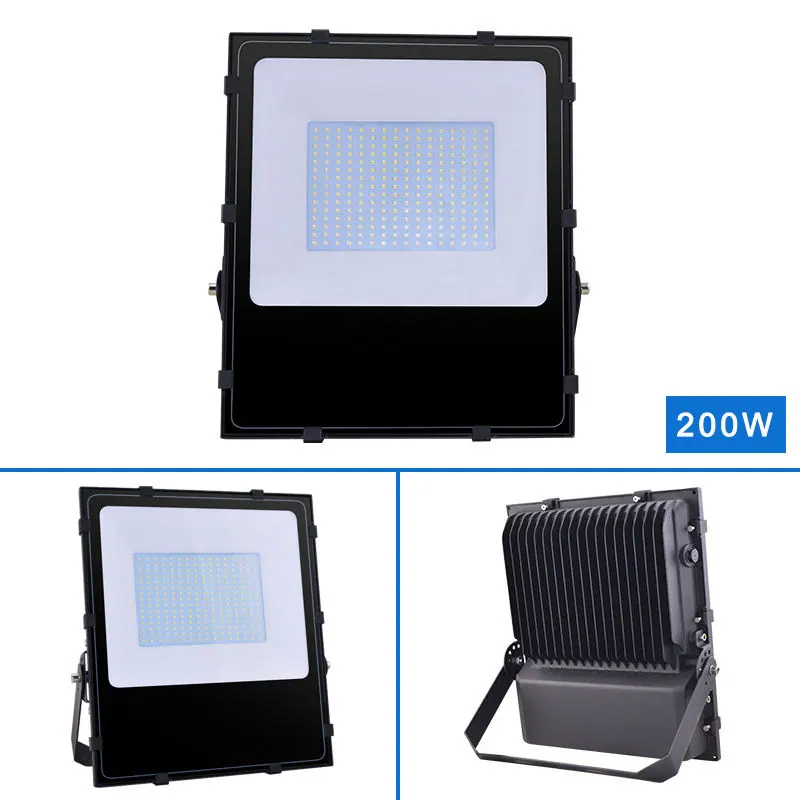

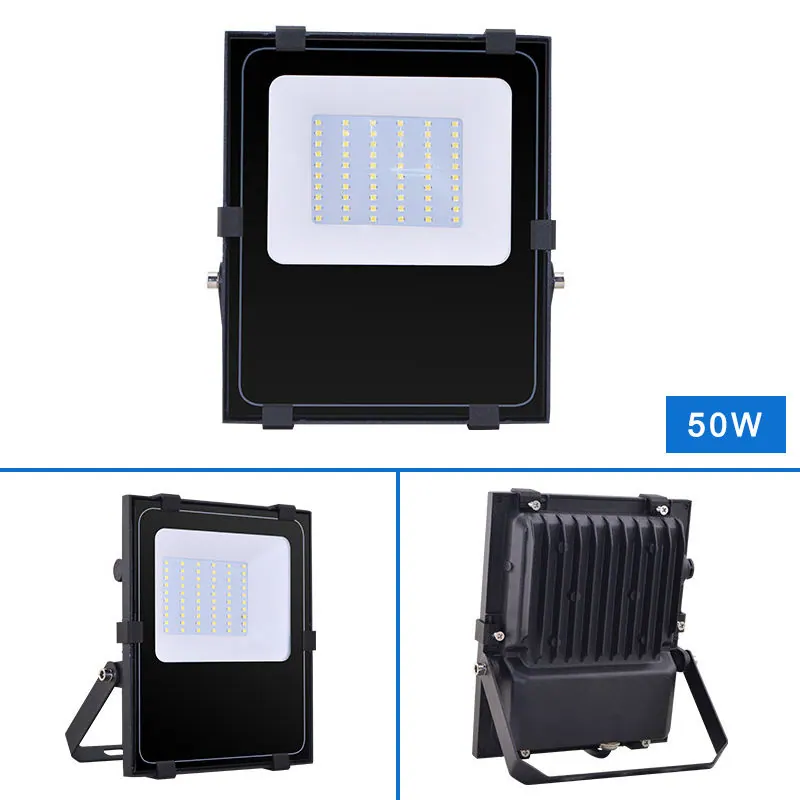

| SKU | LED Qty | Size |
|---|---|---|
| B2-96 | 96 | L295*W210*H70MM |
| B2-144 | 144 | L349*W249*H70MM |
| B2-192 | 192 | L405*W290*H70MM |
Common questions
Asked & answered.
The things buyers ask us most. Don't see yours? Send a question — we reply within 24 hours.
Generic for category
What is the warranty?
3 years on the full fixture, 5 years on the LED module, 10 years on the solar panel. We replace any defective unit at our cost.
What is the MOQ?
10 pieces for standard models. 50 pieces for fully custom builds. Sample orders of 1-3 pieces ship from stock at a small premium.
What is the lead time?
7-15 days for samples. 15-25 days for bulk orders under 500 pieces. 25-35 days for 500-2000 pieces. We confirm exact lead time with every quote.
How do I install it?
Every shipment includes a printed installation guide. Most fixtures mount to a standard 60mm pole tenon with 4 M8 bolts. No special tools needed.
