Product familyBWAll-in-one

BW Series Solar Flood Light

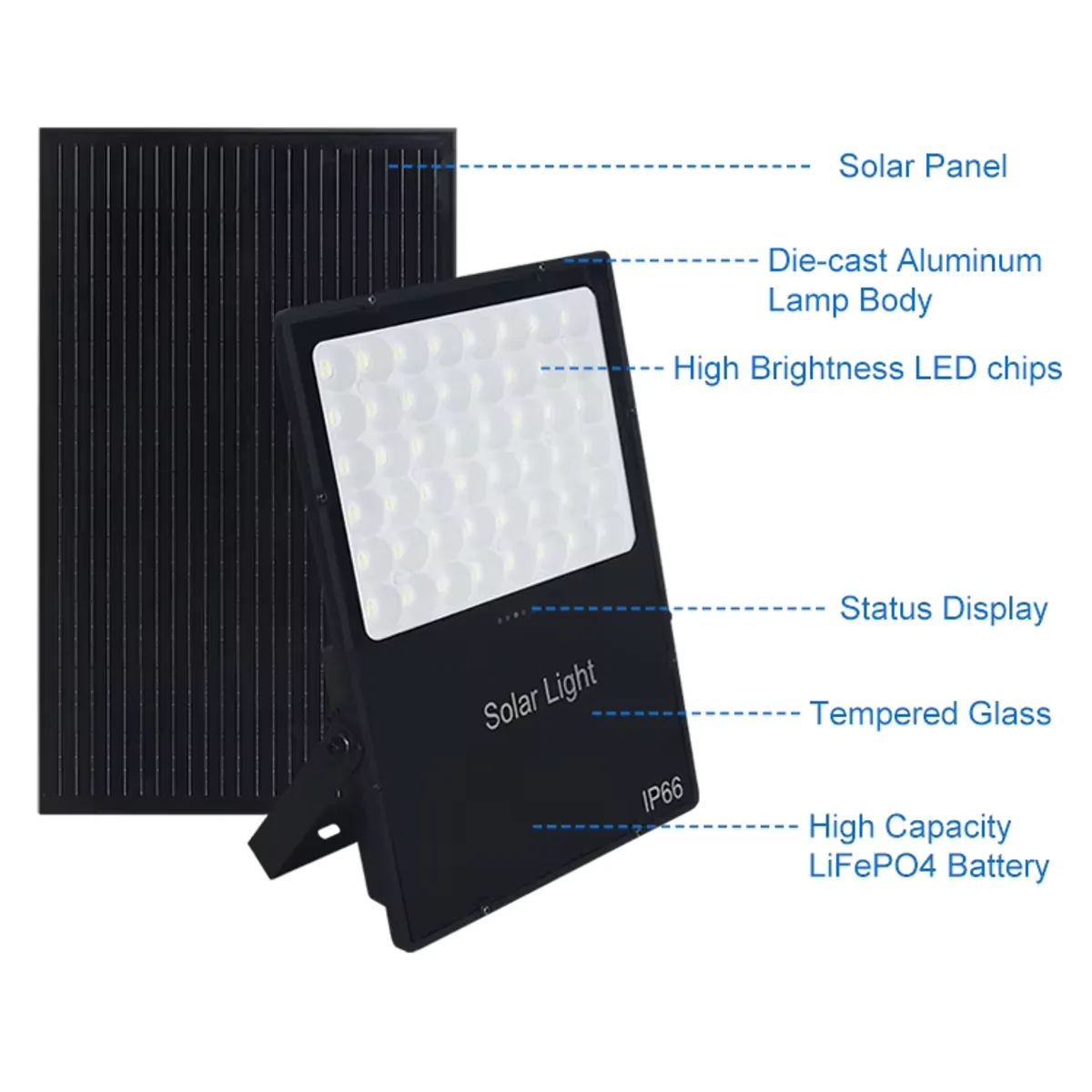

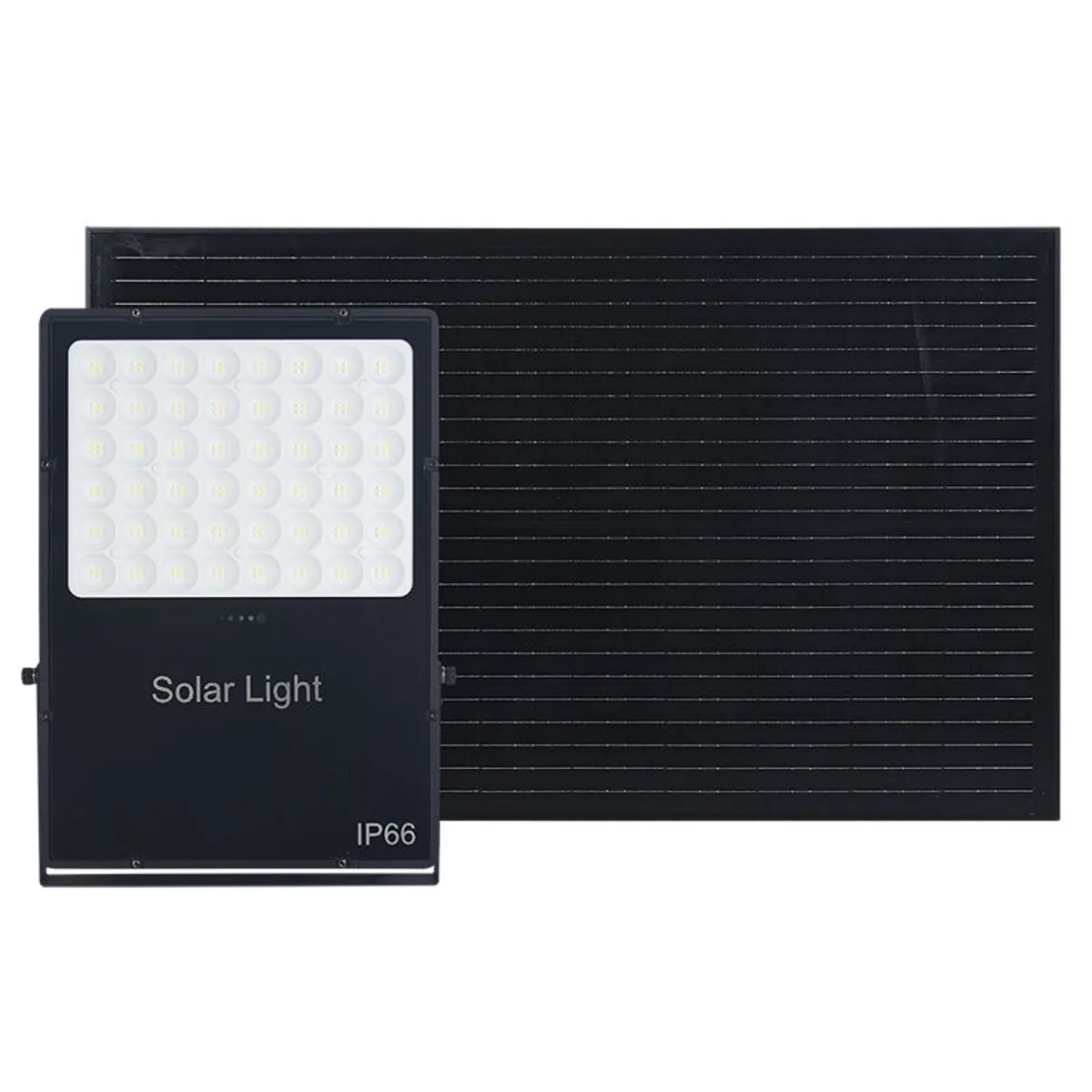

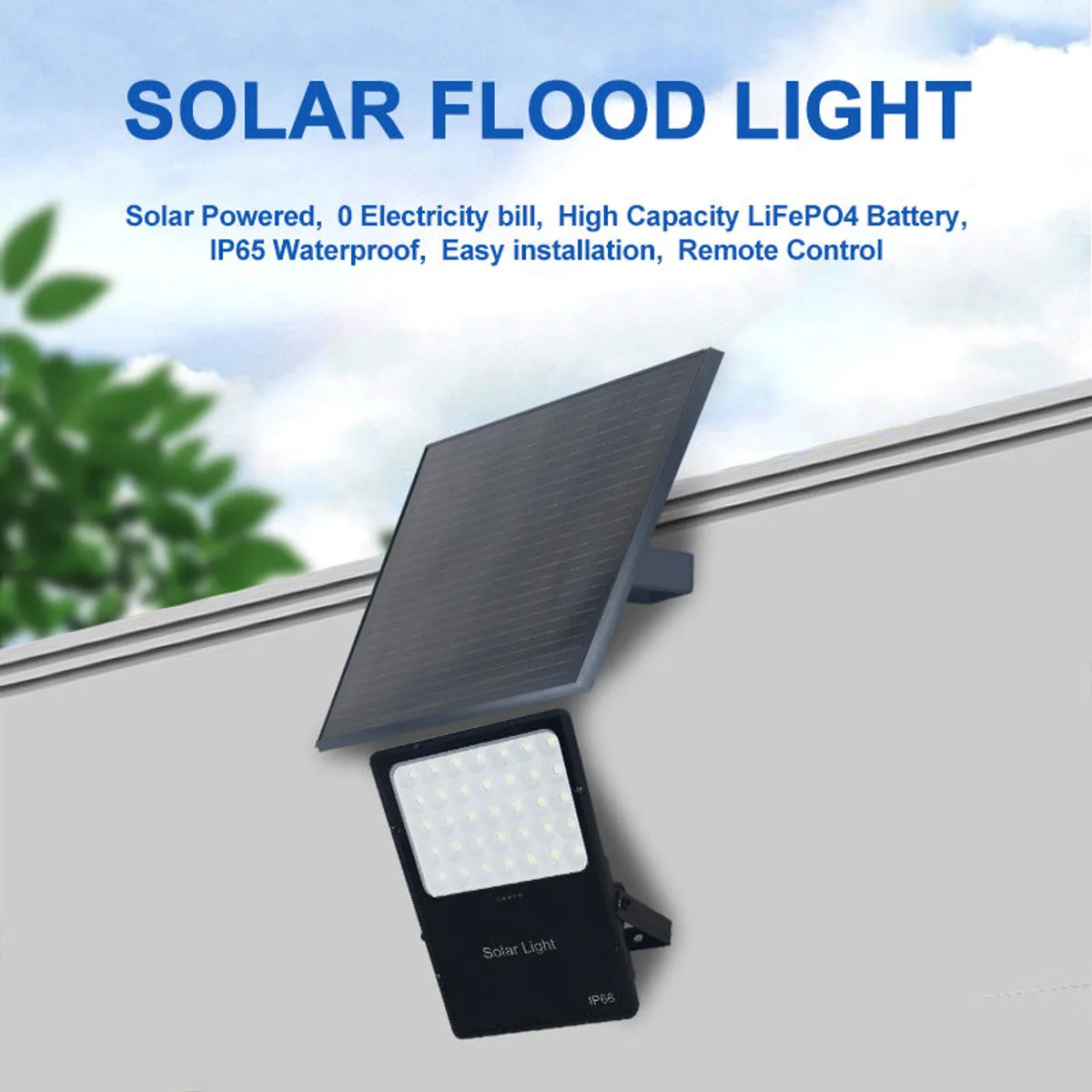

BW Series wall-mounted solar flood lights for signage, building facades, security perimeters and parking-lot accent. The A / B / C variants share one IP65 aluminum housing with SMD 3030 LED — the A is the 45W compact model, the B is the 50W mid-output, and the C is the 60W high-output. Wall-mount 2-4 m above grade, no trenching, no grid power.

Variants
3
Mount
All-in-one
Series
BW
WhatsApp · 24h replyGet a quote
Product details

Closer look.

Click any tile to view it full size.

Available variants

3 variants.

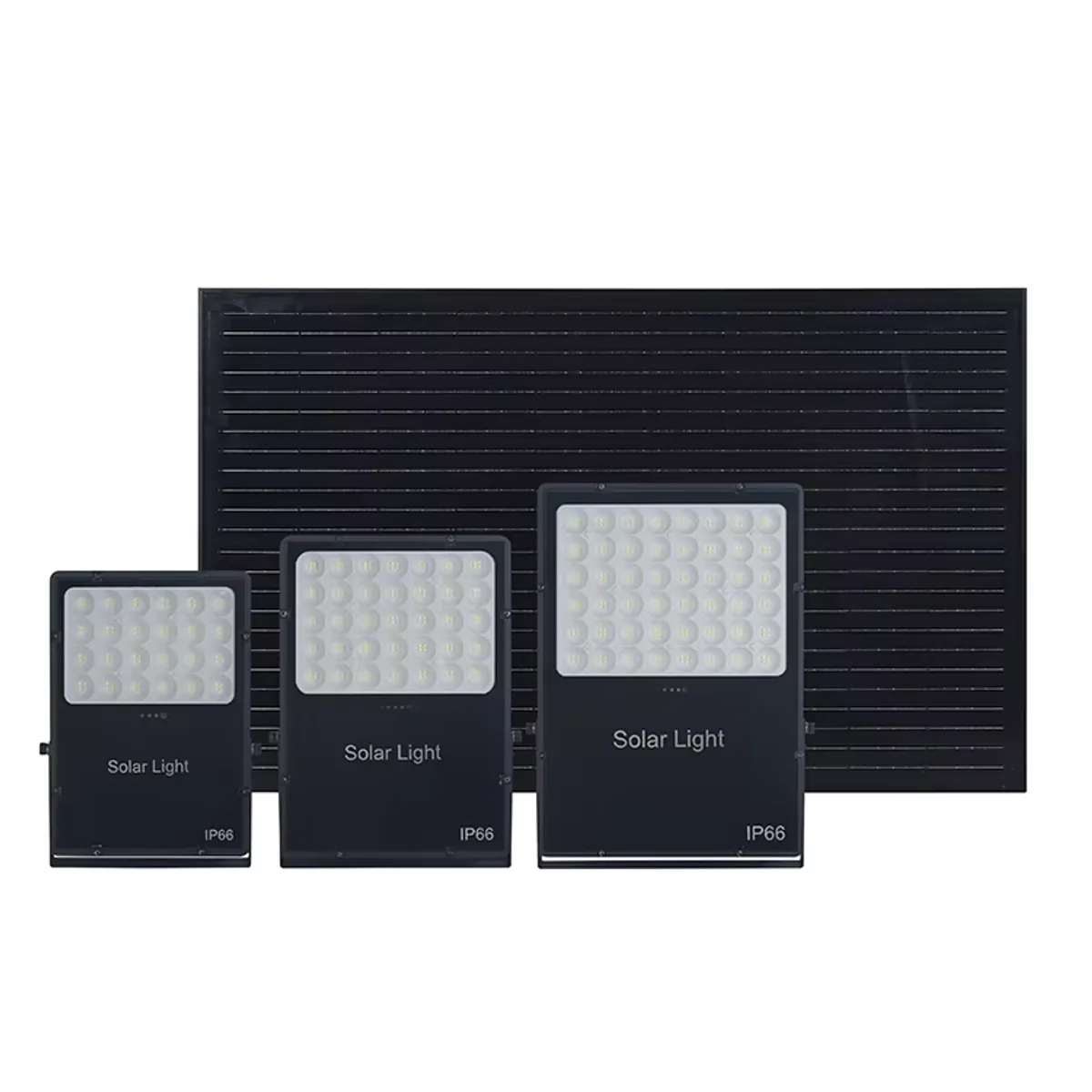

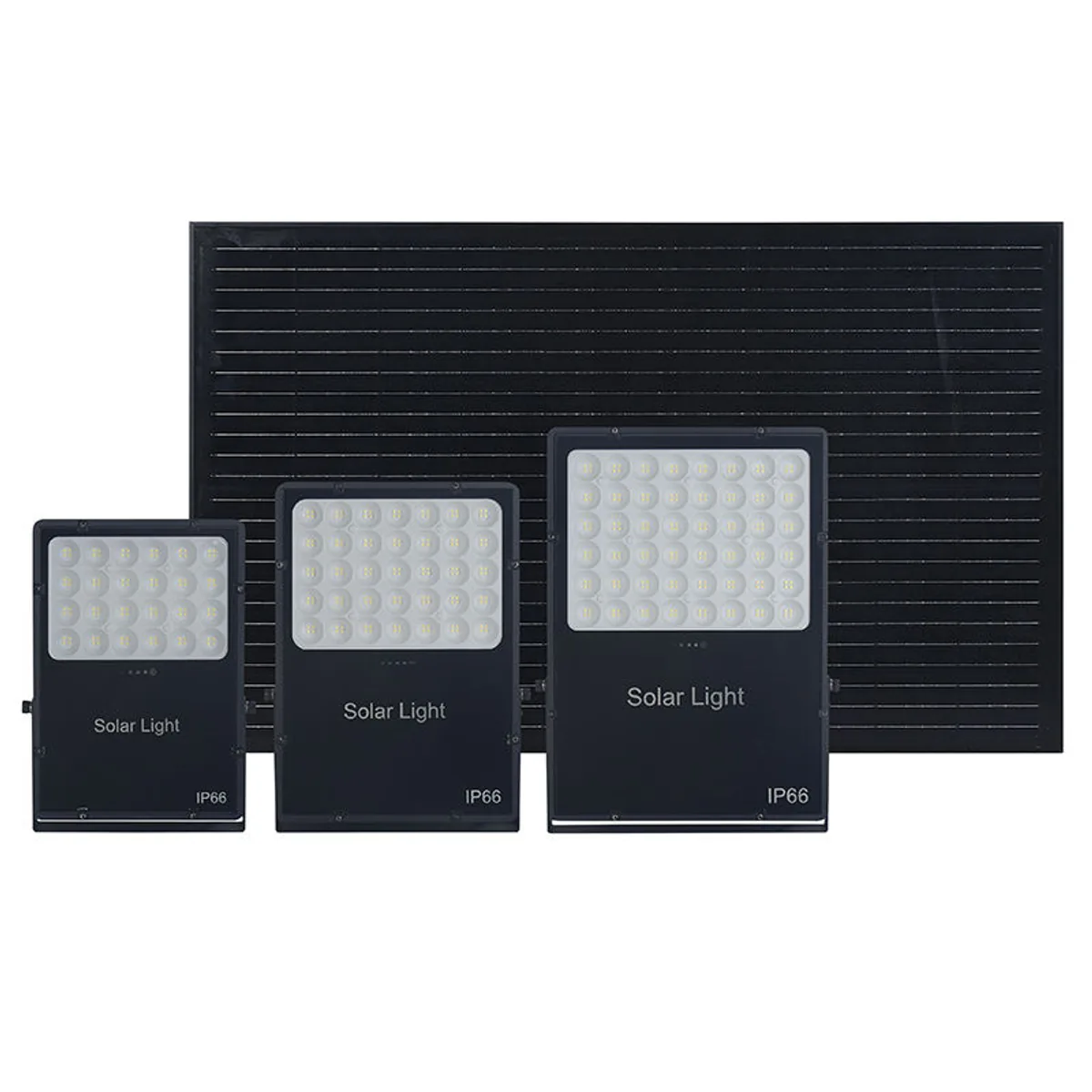

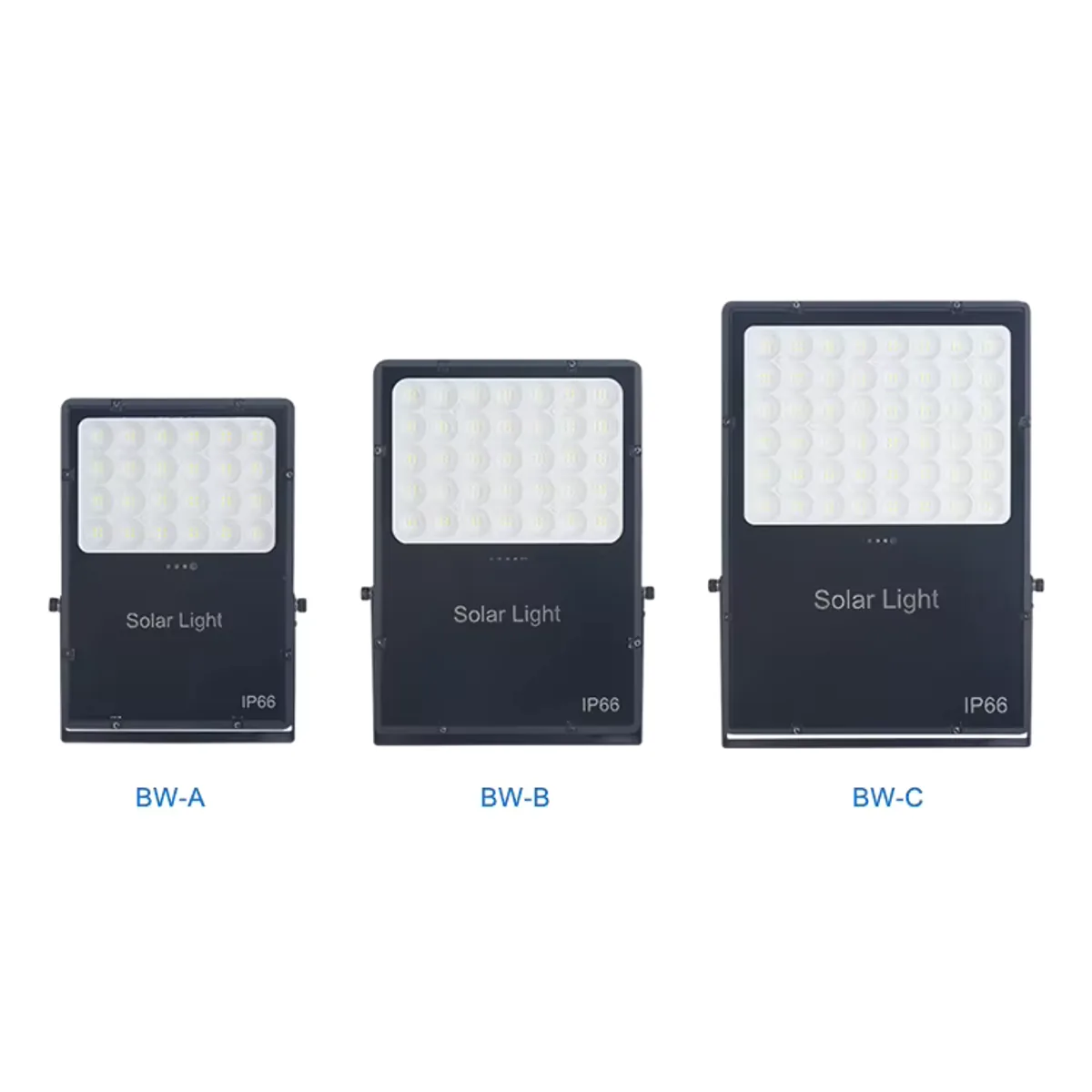

BW-A / BW-B / BW-C · 2-4m

One family, several builds. Compare size, light source, battery, solar panel and installation height across every variant, side by side.

Select a variant

All variants are listed below — selecting one highlights its row and, where per-variant imagery exists, updates the photo above.

Variant specification comparison
ModelSizeLight sourceBatterySolar panelInstallation height
BW-AL295*W210*H70MMSMD 3030 96pcs3.2V/45AH5V/45W2-4m
BW-BL349*W249*H70MMSMD 3030 144pcs3.2V/60AH5V/50W2-4m
BW-CL405*W290*H70MMSMD 3030 192pcs3.2V/75AH5V/60W2-4m
Common questions

Asked & answered.

Answers drawn from the specifications above. Need a parameter that is not listed? Send us a question — we reply within 24 hours.

What mounting heights does the BW Series Solar Flood Light cover?
Across its 3 variants, this family covers mounting heights of 2-4m. Pick the one that matches your pole height and the road width you are lighting — tell us your target height and we will confirm the fit.
Is the BW Series Solar Flood Light integrated or split?
This family uses an all-in-one design — solar panel, battery, controller and LED are integrated in a single fixture. Mount it on the pole and switch it on; no external wiring or battery box.
What battery and light source does the BW Series Solar Flood Light use?
Configurations across the family include batteries (3.2V/45AH / 3.2V/60AH / 3.2V/75AH) and a SMD 3030 96pcs / SMD 3030 144pcs / SMD 3030 192pcs light source. The per-variant pairing is listed in the table above; sites needing longer autonomy can step up to a larger battery and panel.
Can I order more than one variant in the same project?
Yes. All 3 variants belong to one family and can be mixed freely in a single order — the MOQ applies per model. Share your pole-height breakdown and we will recommend the mix.
