industrial led

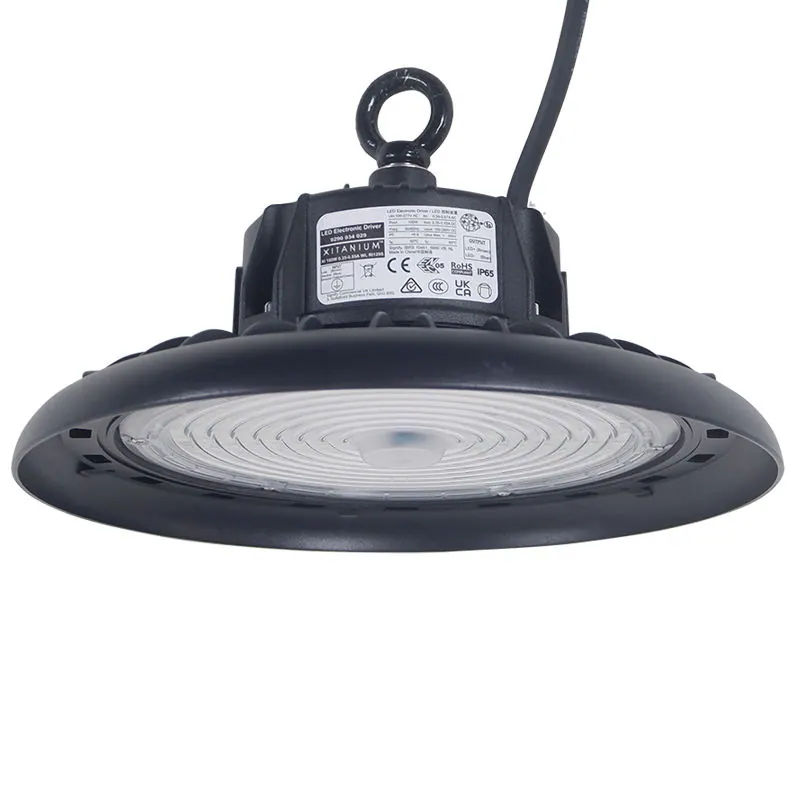

E2 LED High Bay Light (100W, AC Powered)
Model: E2
100W AC-powered LED high bay light with a flat round body with compact driver housing, SMD 2835 LED, IP65 rating and AC 85~240V universal input.
Warranty
3-5 yr
MOQ
10 pcs
Lead time
15-25d
CE
Certified
RoHS
Certified
ISO 9001
Certified
Technical data
Specs, plain.
Every value verified on the production line. Need a parameter not listed? Ask us.
| Size | ⌀301*H120MM |
|---|---|
| LED | SMD 2835 |
| Power | 100W |
| Input Voltage | AC 85~240V |
| IP Rating | IP65 |
| Material | Die-cast aluminum + PC lens |
| Warranty | 3 years |
About this product
What it does.

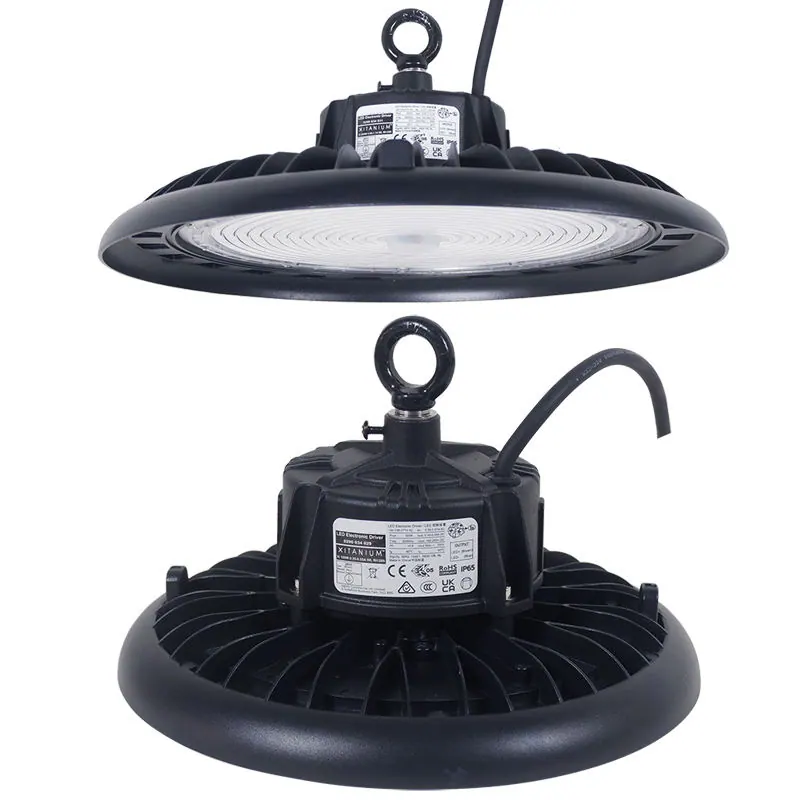

The E2 is a 100W AC-powered LED high bay light built for replacing 250-400W metal halide and sodium high bays. A flat round body with compact driver housing gives it a distinct look while keeping the thermal path short and the weight low.
SMD 2835 LED emitters behind a PC lens deliver wide, even light distribution across a mounting height of 6-10m. Universal AC 85~240V input means one SKU covers most single- and three-phase markets without a separate driver SKU. Die-cast aluminium housing, IP65 rating, and an eye-bolt hanger for chain or hook mounting.

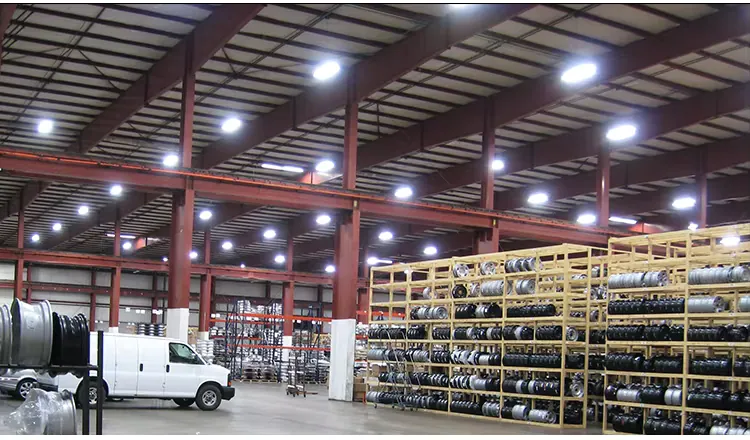

Common applications: warehouses, factory floors, workshops, logistics centres, exhibition halls, gymnasiums.
Product details
Closer look.

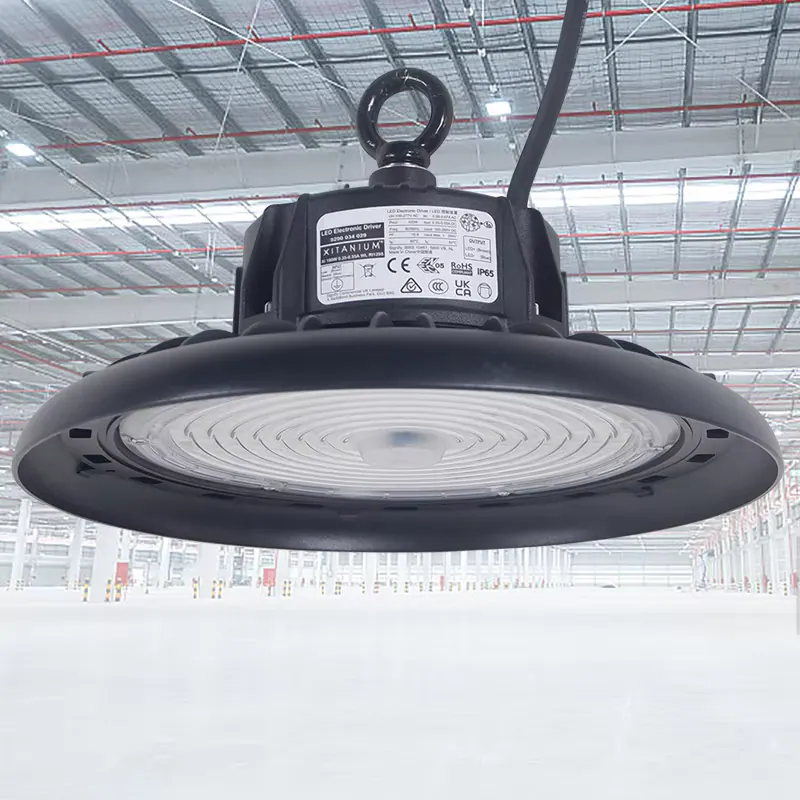

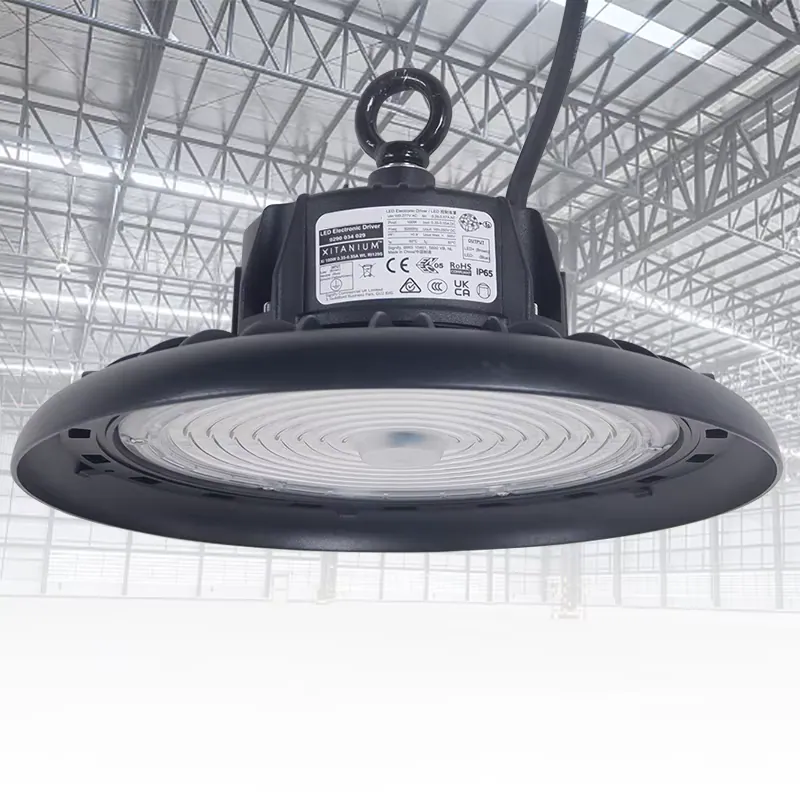

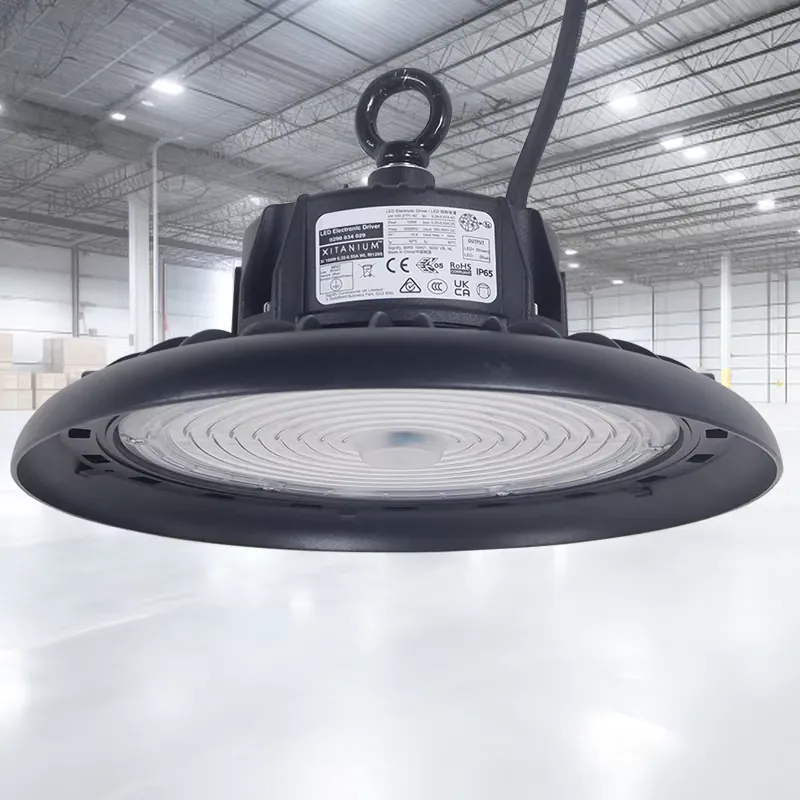

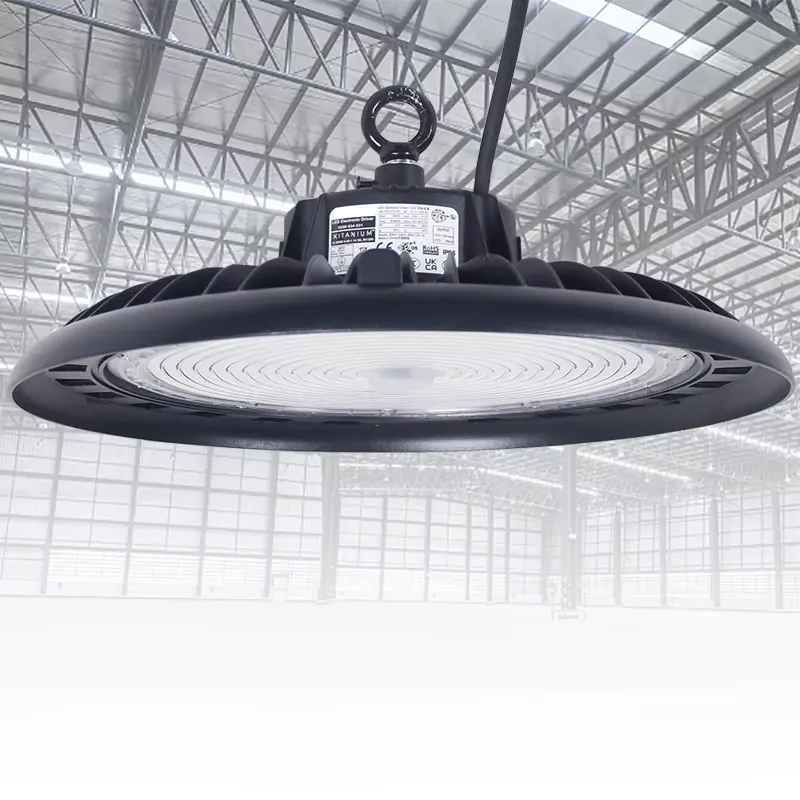

Dimensions, structure, application scenes, and certification documents. Click any tile to view at full size.
8 details
Common questions
Asked & answered.
The things buyers ask us most. Don't see yours? Send a question — we reply within 24 hours.
Generic for category
What is the warranty?
3 years on the full fixture, 5 years on the LED module, 10 years on the solar panel. We replace any defective unit at our cost.
What is the MOQ?
10 pieces for standard models. 50 pieces for fully custom builds. Sample orders of 1-3 pieces ship from stock at a small premium.
What is the lead time?
7-15 days for samples. 15-25 days for bulk orders under 500 pieces. 25-35 days for 500-2000 pieces. We confirm exact lead time with every quote.
How do I install it?
Every shipment includes a printed installation guide. Most fixtures mount to a standard 60mm pole tenon with 4 M8 bolts. No special tools needed.
industrial led
E3 LED High Bay Light (100W, AC Powered)
100W AC-powered LED high bay light with a flat round panel with low-profile reflector, SMD 2835 LED, IP65 rating and AC 85~240V universal input.
industrial led
GP LED Canopy Light (80W / 100W / 120W / 150W / 200W)
LED canopy light for petrol stations, canopies, low-bay ceilings. 80/100W, SMD 5050 48pcs LED, IP65, AC 100-277V.
Need a custom configuration?
Different wattage, color temperature, or pole height? We adjust to spec. Most custom orders ship in 25-30 days.
